1750 SL001

Active

ALPHA WIRE

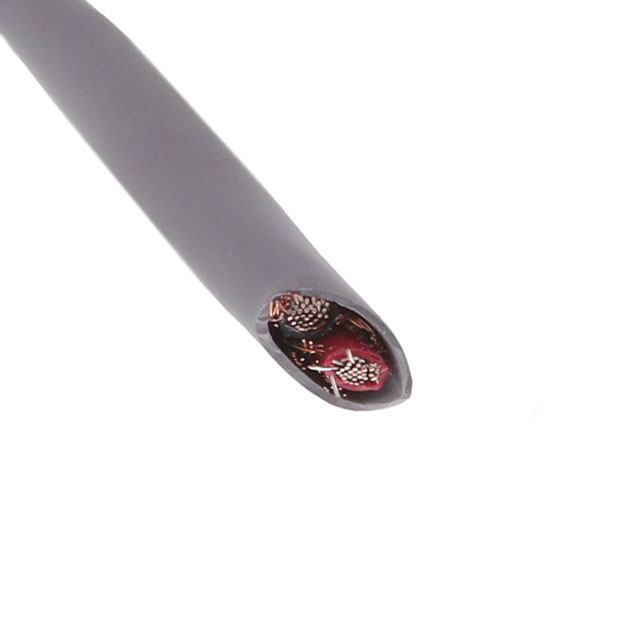

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 14 AWG, 1000 FT, 304.8 M

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 14 AWG, 1000 FT, 304.8 M

Technical Specifications

Parameters and characteristics for this part

Specification	1750 SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	41
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.299 in
Jacket (Insulation) Diameter [diameter]	7.6 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	75 %
Shield Material	Copper, Bare
Shield Type	Braid
Usage	Control, Communication
Voltage	450 V
Wire Gauge	13.5 AWG

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 14 AWG, 1000 FT, 304.8 M

Part	Cable Type	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Shield Material	Wire Gauge	Jacket Color	Usage	Jacket (Insulation) Material	Conductor Insulation	Conductor Material	Shield Coverage	Length	Length	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors
ALPHA WIRE 1750 SL001	Multi-Conductor	450 V	0.02 in	0.508 mm	-20 C	80 C	0.299 in	7.6 mm	Braid	Copper, Bare	13.5 AWG	Slate	Communication, Control	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Copper, Tinned	75 %	1000 ft	304.8 m	41	30 AWG	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 6.94
Newark	Spool of 1000	1	$ 7926.13

General part information

2 Conductor Multi-Conductor Cable Slate 14 AWG Braid 1000.0' (304.8m)
