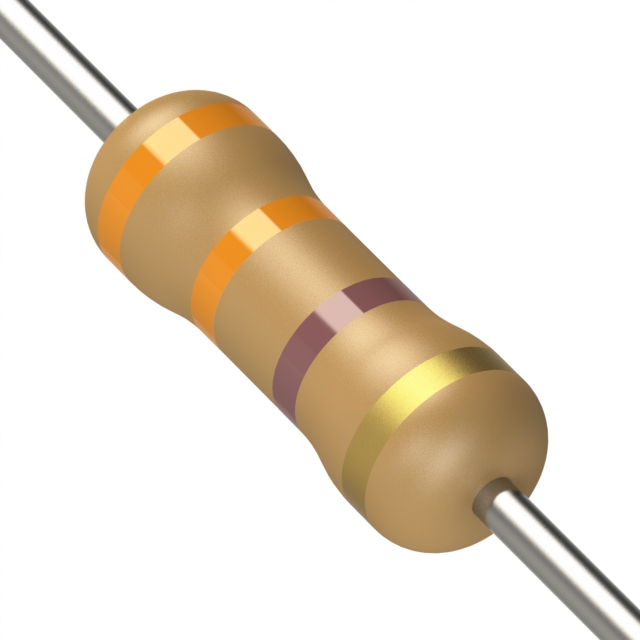

CF1/2CT52R331J

Active

KOA Speer Electronics, Inc.

RES 330 OHM 5% 1/2W AXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CF1/2CT52R331J

Active

KOA Speer Electronics, Inc.

RES 330 OHM 5% 1/2W AXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.11
		10	$ 0.06
		25	$ 0.05
		50	$ 0.04
		100	$ 0.03
		250	$ 0.03
		500	$ 0.02
		1000	$ 0.02
	Tape & Reel (TR)	4000	$ 0.02
		8000	$ 0.01
		12000	$ 0.01
		20000	$ 0.01
		28000	$ 0.01
		40000	$ 0.01
		100000	$ 0.01

Description

General part information

CF1/2 Series

330 Ohms ±5% 0.5W, 1/2W Through Hole Resistor Axial Carbon Film

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CF1/2CT52R331J	CF1/2 Series

Composition	Carbon Film	Carbon Film
Number of Terminations	2	2
Operating Temperature [Max]	155 °C	155 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial	Axial
Power (Watts)	0.5 W	0.5 W
Power (Watts)	0.5 W	0.5 W
Resistance	330 Ohms	1.2 - 10000 Ohms
Size / Dimension [diameter]	3 mm	3 mm
Size / Dimension [diameter]	0.118 in	0.118 in
Size / Dimension [x]	0.335 "	0.335 "
Size / Dimension [x]	8.5 mm	8.5 mm
Supplier Device Package	Axial	Axial
Temperature Coefficient [Max]	350 ppm/°C	-700 - 350 ppm/°C
Temperature Coefficient [Min]	-450 ppm/°C	-1300 - 0 ppm/°C
Tolerance	5 %	5 %
