1404-3
ActiveKeystone Electronics

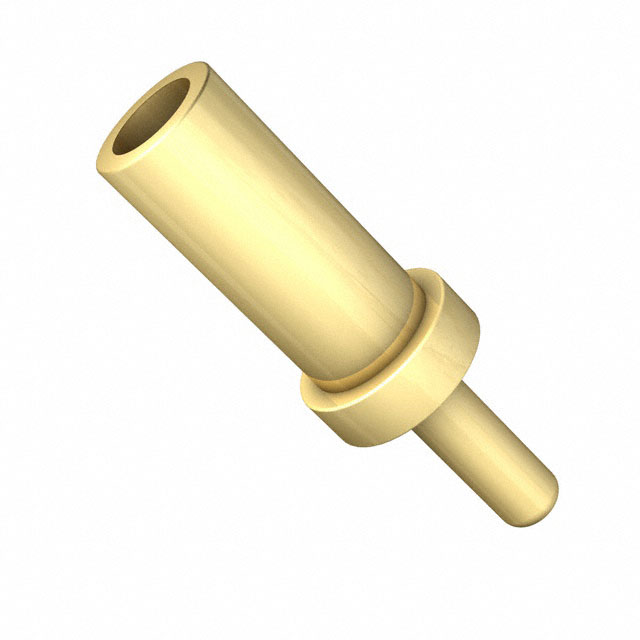

CONN PC PIN CIRC 0.025DIA GOLD
1404-3
ActiveKeystone Electronics
CONN PC PIN CIRC 0.025DIA GOLD
Description
General part information
1404-3
PC Pin Terminal Connector Through Hole Gold 0.025" (0.64mm) Dia
Technical Specifications
Parameters and characteristics for this part
| Specification | 1404-3 |
|---|---|
| Board Thickness | 0.093 in |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Ąin |
| Contact Material | Brass |
| Flange Diameter | 0.062 in |
| Insulation | Non-Insulated |
| Length - Above Flange | 0.079 in |
| Length - Below Flange | 0.113 in |
| Length - Overall | 0.213 in |
| Mounting Hole Diameter | 0.052 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange (Diameter) | 0.025 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Swage |
