UPL250-004

Active

Cinch Connectivity Solutions Trompeter

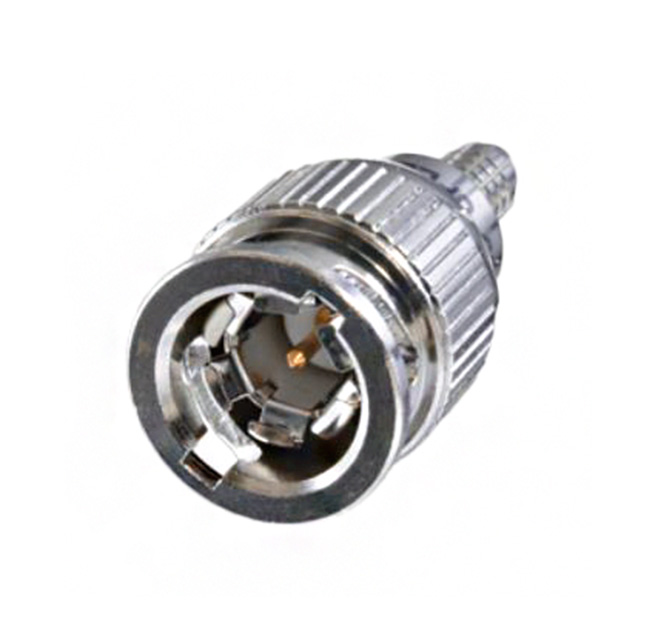

CONN MINI BNC PLG STR 75 OHM

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CONN MINI BNC PLG STR 75 OHM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UPL250-004	UPL250 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Cable Group	RG-179	Lucent 734A, RG-179, Lucent 735A
Center Contact Plating	Gold	Gold
Connector Style	Mini, BNC	Mini, BNC
Connector Type	Male Pin, Plug	Male Pin, Plug
Contact Termination	Crimp	Crimp
Fastening Type	Bayonet Lock	Bayonet Lock
Frequency - Max [Max]	4 GHz	4 GHz
Housing Color	Silver	Silver
Impedance	75 Ohms	75 Ohms
Includes	1 Contact, 1 Sleeve, 1 Insert, 1 Connector	1 Contact, 1 Sleeve, 1 Insert, 1 Connector
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Ports	1	1
Shield Termination	Crimp	Crimp

CONN MINI BNC PLG STR 75 OHM

Part	Cable Group	Housing Color	Mounting Type	Frequency - Max [Max]	Body Material	Body Finish	Impedance	Number of Ports	Connector Type	Connector Style	Contact Termination	Fastening Type	Center Contact Plating	Shield Termination	Includes
Cinch Connectivity Solutions Trompeter UPL250-025/T50	Lucent 734A	Silver	Free Hanging (In-Line)	4 GHz	Brass	Nickel	75 Ohms	1	Male Pin, Plug	BNC, Mini	Crimp	Bayonet Lock	Gold	Crimp
Cinch Connectivity Solutions Trompeter UPL250-004	RG-179	Silver	Free Hanging (In-Line)	4 GHz	Brass	Nickel	75 Ohms	1	Male Pin, Plug	BNC, Mini	Crimp	Bayonet Lock	Gold	Crimp	1 Connector, 1 Contact, 1 Insert, 1 Sleeve
Cinch Connectivity Solutions Trompeter UPL250-026	Lucent 735A	Silver	Free Hanging (In-Line)	4 GHz	Brass	Nickel	75 Ohms	1	Male Pin, Plug	BNC, Mini	Crimp	Bayonet Lock	Gold	Crimp
Cinch Connectivity Solutions Trompeter UPL250-025	Lucent 734A	Silver	Free Hanging (In-Line)	4 GHz	Brass	Nickel	75 Ohms	1	Male Pin, Plug	BNC, Mini	Crimp	Bayonet Lock	Gold	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC, Mini Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
