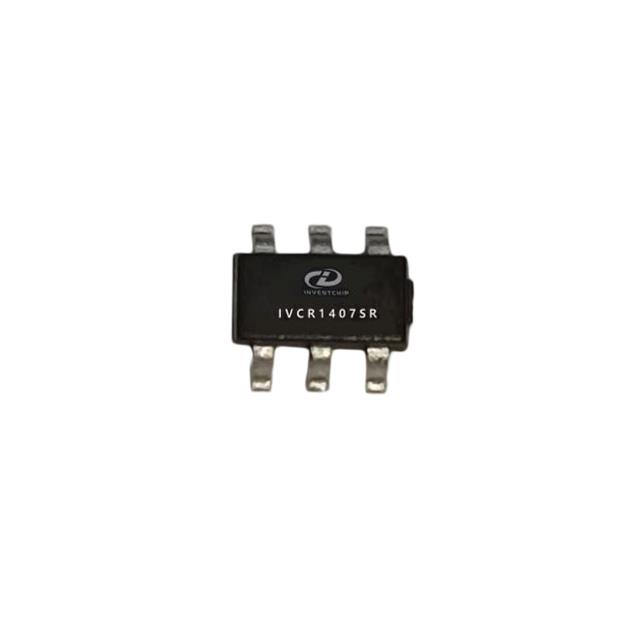

IVCR1407SR

Active

Inventchip

GENERAL PURPOSE DRIVER, 24V, 4A

Search across all available documentation for this part.

Active

Inventchip

GENERAL PURPOSE DRIVER, 24V, 4A

Technical Specifications

Parameters and characteristics for this part

Specification	IVCR1407SR

Channel Type	Single
Current - Peak Output (Source, Sink) [custom]	4 A
Current - Peak Output (Source, Sink) [custom]	4 A
Driven Configuration	Low-Side
Gate Type	IGBT, MOSFET
Input Type	Non-Inverting, Inverting
Mounting Type	Surface Mount
Number of Drivers	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	SC-74A, SOT-753
Rise / Fall Time (Typ) [custom]	6 ns
Rise / Fall Time (Typ) [custom]	6 ns
Supplier Device Package	SOT-23-5
Voltage - Supply [Max]	20 V
Voltage - Supply [Min]	4.5 V

GENERAL PURPOSE DRIVER, 24V, 4A

Part	Channel Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Supplier Device Package	Driven Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Type	Mounting Type	Number of Drivers	Gate Type	Package / Case
Inventchip IVCR1407SR	Single	4 A	4 A	6 ns	6 ns	SOT-23-5	Low-Side	-40 °C	125 °C	20 V	4.5 V	Inverting, Non-Inverting	Surface Mount	2	IGBT, MOSFET	SC-74A, SOT-753

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Low-Side Gate Driver IC Inverting, Non-Inverting SOT-23-5

Technical documentation and resources

No documents available
