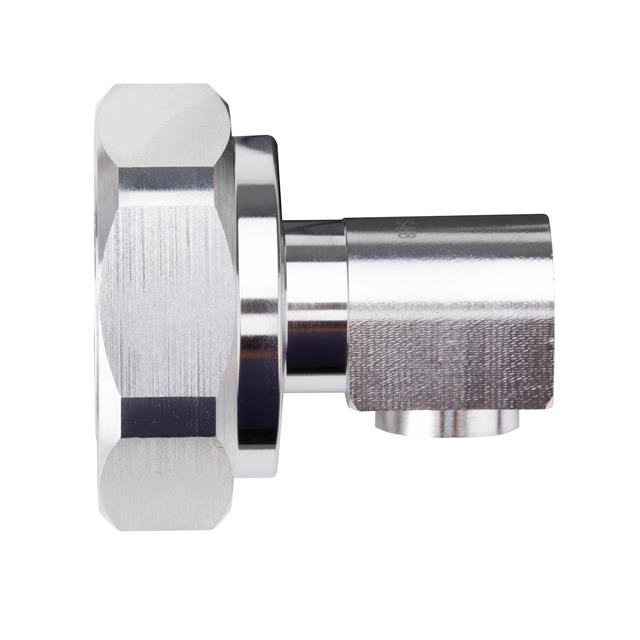

RFD-1610DS-H8
ActiveRF Industries
7/16 DIN MALE R/A; LOW PIM
RFD-1610DS-H8
ActiveRF Industries
7/16 DIN MALE R/A; LOW PIM
Description
General part information
RFD-1610DS-H8
7/16 DIN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | RFD-1610DS-H8 |
|---|---|
| Body Finish | White Bronze |
| Body Material | Brass |
| Cable Group | FSJ2-50, SCF38-50J |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | 7/16 DIN |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Threaded |
| Features | Low PIM |
| Frequency - Max | 7.5 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Solder |
