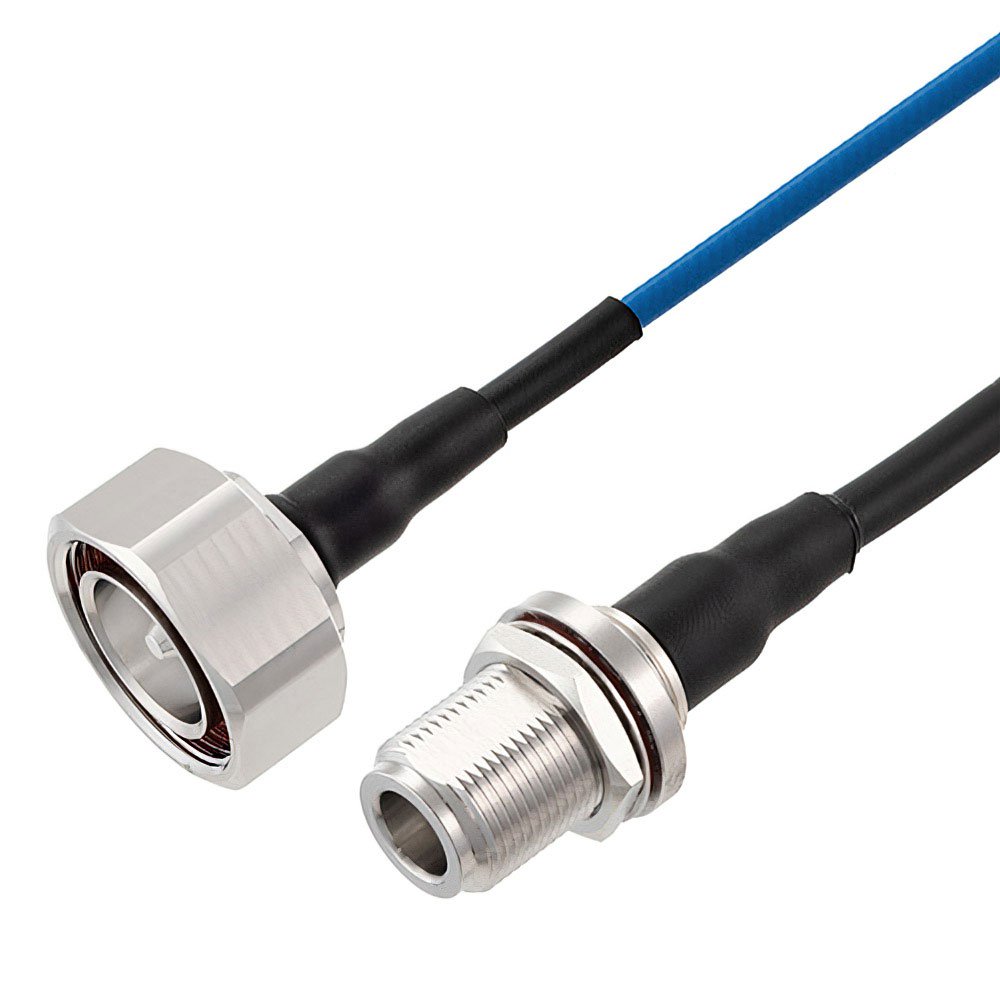

Specification	FMCA2507-24

1st Connector	7/16 Plug
1st Connector - Type	Plug
1st Connector Dimension (1)	7 mm
1st Connector Dimension (2)	16 mm
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	402LF, TFT
Color	Blue
Connector Impedance	50 Ohms
Frequency - Max	5.8 GHz
Length	24 in
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Overall Impedance	50 Ohms
Style	7/16 DIN to N-Type
