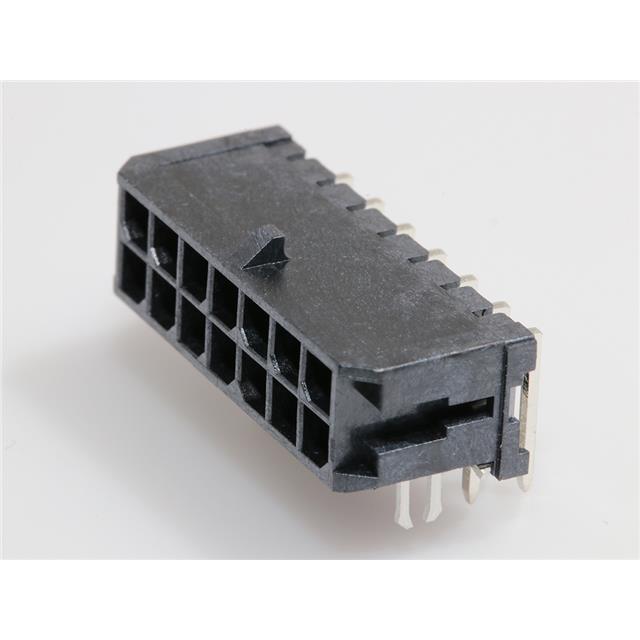

Specification	0430452402

Applications	Telecommunications, Industrial, General Purpose, Automotive, Medical
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Post	0.125 in
Contact Material	Brass Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A, 8 A
Current Rating	Varies by Wire Gauge
Fastening Type	Locking Ramp
Features	Board Lock
Insulation Color	Black
Insulation Height	0.29 in
Insulation Material	Glass Filled, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24 pos
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.118 in
Row Spacing - Mating	0.118 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	600 V
