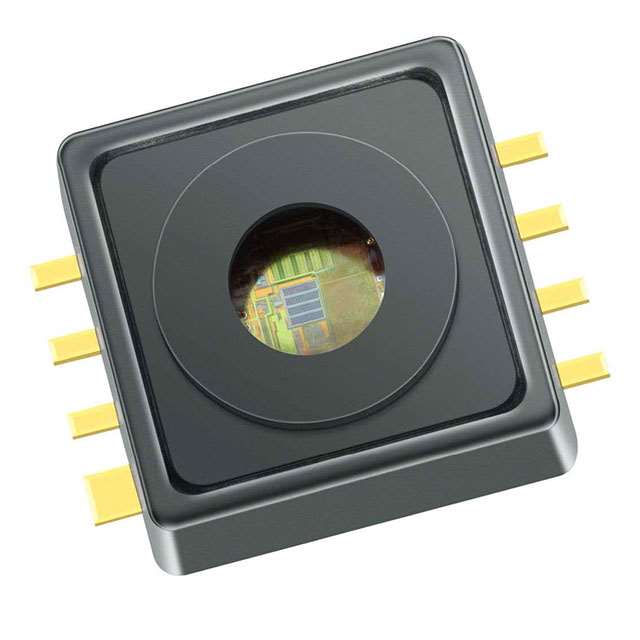

KP226E0109XTMA1

Unknown

Infineon Technologies

PRESSURE SENSOR, ABSOLUTE, 2.18 PSI, 46.41 PSI, 0.5 V, 4.5 V, DSOF

Deep-Dive with AI

Search across all available documentation for this part.

KP226E0109XTMA1

Unknown

Infineon Technologies

PRESSURE SENSOR, ABSOLUTE, 2.18 PSI, 46.41 PSI, 0.5 V, 4.5 V, DSOF

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KP226E0109XTMA1

Accuracy	0.435 PSI
Accuracy	3 kPa
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Grade	Automotive
Mounting Type	Surface Mount
Operating Pressure [Max]	46.41 PSI
Operating Pressure [Max]	320 kPa
Operating Pressure [Min]	2.18 PSI
Operating Pressure [Min]	15 kPa
Operating Temperature [Max]	140 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	8-SMD Module
Port Style	No Port
Qualification	AEC-Q100
Supplier Device Package	PG-DSOF-8-162
Termination Style	SMD (SMT) Tab
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.5 V

KP226E0109 Series

Part	Features	Package / Case	Output Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Style	Accuracy	Accuracy	Grade	Applications	Output [Min]	Output [Max]	Qualification	Operating Pressure [Min]	Operating Pressure [Max]	Operating Pressure [Min]	Operating Pressure [Max]
Infineon Technologies KP226E0109XTMA1	Amplified Output Temperature Compensated	8-SMD Module	Analog Voltage	Surface Mount	140 °C	-40 °C	SMD (SMT) Tab	PG-DSOF-8-162	4.5 V	5.5 V	No Port	0.435 PSI	3 kPa	Automotive	Board Mount	0.5 V	4.5 V	AEC-Q100	2.18 PSI	46.41 PSI	15 kPa	320 kPa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each (Supplied on Cut Tape)	1	$ 7.68
		10	$ 5.68
		25	$ 5.41
		50	$ 5.14
		100	$ 4.87
		250	$ 4.72
		500	$ 4.57
		1000	$ 4.22

Description

General part information

KP226E0109 Series

KP226E0109XTMA1 is a miniaturized analog manifold air pressure sensor IC based on a capacitive principle. It is surface micromachined with a monolithic integrated signal conditioning circuit implemented in BiCMOS technology. The sensor converts pressure into an analog output signal. The chip is packaged in a "green" SMD housing. The sensor has been primarily developed for measuring manifold air pressure, but can also be used in other application fields. The high accuracy and the high sensitivity of the device make it a perfect fit for advanced automotive applications as well as industrial and consumer applications. The KP226E0109 is defined for use in target applications automotive applications (manifold air pressure measurement), industrial control, consumer applications, medical applications, weather stations, and altimeters.
