PMEG050V150EPD139
ActiveNXP USA Inc.
RECTIFIER DIODE, SCHOTTKY
PMEG050V150EPD139
ActiveNXP USA Inc.
RECTIFIER DIODE, SCHOTTKY
Description
General part information
PMEG050V150EPD139

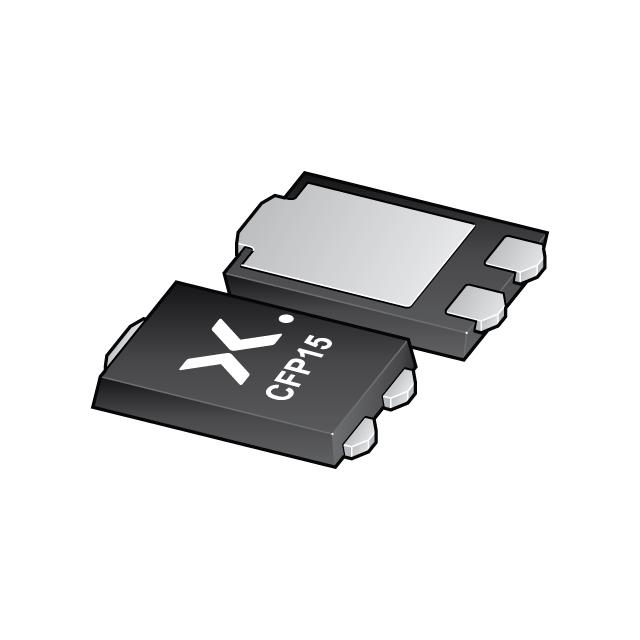

Diode 50 V 15A Surface Mount CFP15
Technical Specifications
Parameters and characteristics for this part
| Specification | PMEG050V150EPD139 |
|---|---|
| Capacitance | 1750 pF |
| Current - Average Rectified (Io) | 15 A |
| Current - Reverse Leakage | 1 mA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 175 °C |
| Package / Case | TO-277, 3-PowerDFN |
| Package Name | CFP15 |
| Qualification | AEC-Q101 |
| Reverse Recovery Time (trr) | 51 ns |
| Speed - Fast Recovery (Maximum) | 500 ns |
| Speed - Fast Recovery (Minimum) | 200 mA |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) | 500 mV |
