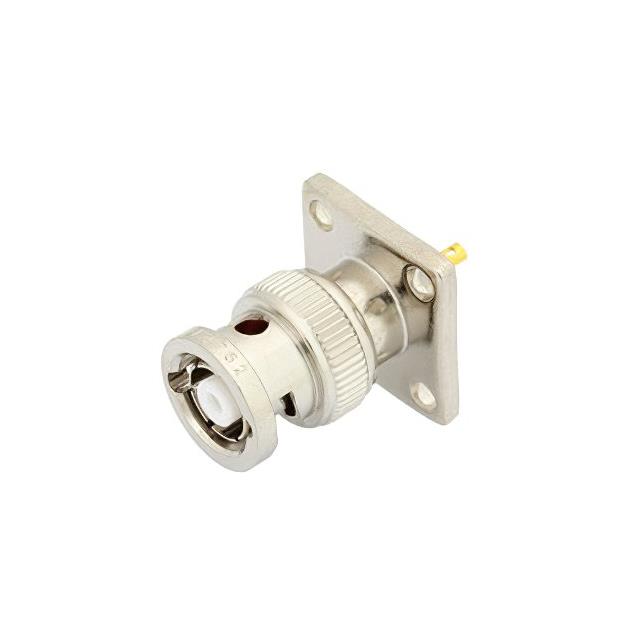

PE4762
ActivePasternack
RP BNC MALE CONNECTOR SOLDER ATT
PE4762
ActivePasternack
RP BNC MALE CONNECTOR SOLDER ATT
Description
General part information
PE4762
RP-BNC Connector Plug, Female Socket 50 Ohms Panel Mount Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | PE4762 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | RP-BNC |
| Connector Type | Plug, Female Socket |
| Contact Termination | Solder Cup |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Impedance | 50 Ohm |
| Mounting Feature | Flange |
| Mounting Type | Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
