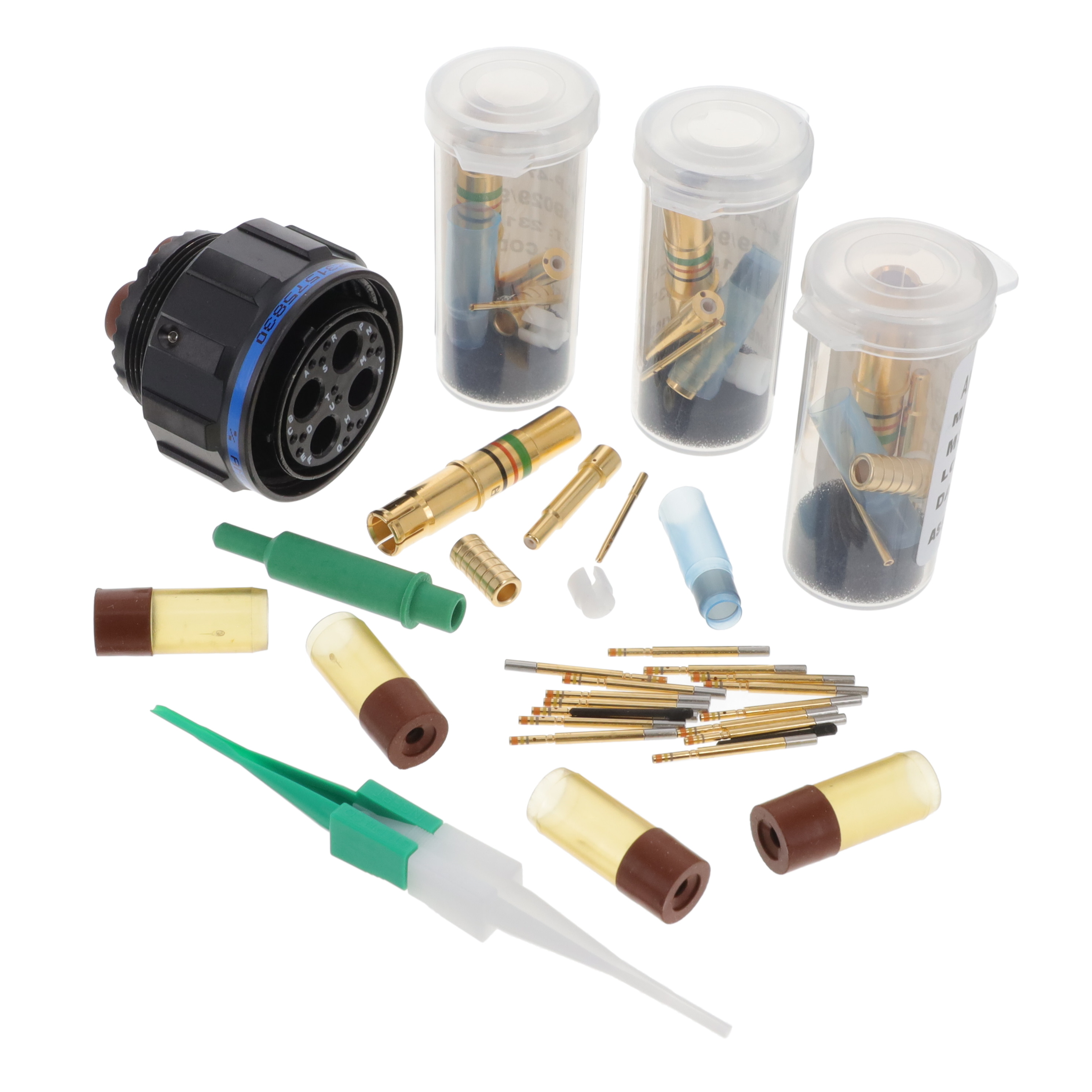

Specification	D38999/26ZF18SN

Applications	Military, Aerospace, Marine, Aviation
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating Options	5A, 45A
Fastening Type	Threaded
Features	Coupling Nut, Self Locking
Grade	Military
Ingress Protection	Environment Resistant
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature (Max)	175 °C
Operating Temperature (Min)	-65 °C
Orientation	N (Normal)
Position Types	Triax, Twinax
Primary Material	Metal
Qualification	MIL-DTL-38999 Series III
Shell Finish	Black Zinc Nickel
Shell Material	Aluminum
Shell Size - Insert Length	19 mm
Shell Size - Insert Width	18 mm
Shell Size (MIL)	F
Shielding	Shielded, Unshielded
Termination	Crimp
