51-256.025

Active

EAO

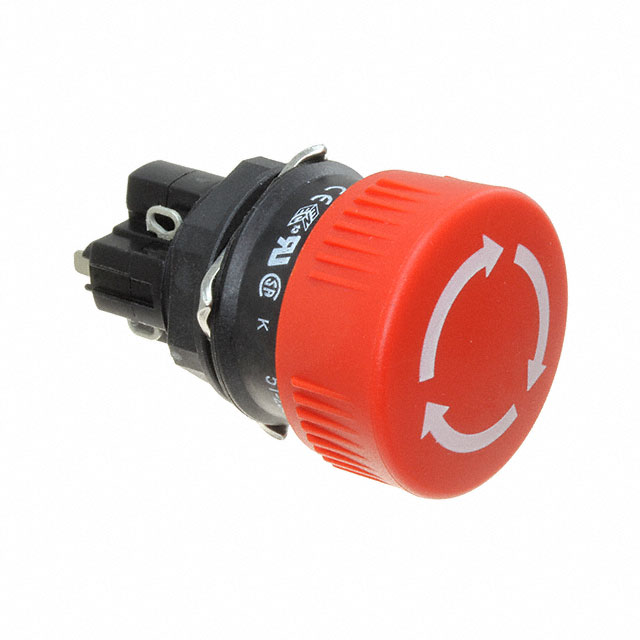

SWITCH ESTOP TWIST RESET 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH ESTOP TWIST RESET 5A 250V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH ESTOP TWIST RESET 5A 250V

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	51-256.025	51-256 Series

Actuator Type	-	Flat Key
Angle of Throw	-	90 °
Circuit	DPST-NO/NC	4PST-2NO/2NC, DPST-NO/NC, SPST-NC
Contact Timing	-	Not Specified
Current Rating (Amps)	5 A	5 - 100 A
Depth Behind Flange	-	34 mm
Features	-	IP65
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Key Removable Positions	-	1 only
Mounting Type	Panel Mount, Front	Panel Mount, Front
Number of Positions	-	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16 mm	16 mm
Reset Operation	Twist	Twist
Switch Function	On-Off, Off-On	On-Off, Off-On
Termination Style	Solder Lug	Solder Lug, PC Pin
Voltage Rating - AC	250 V	42 - 250 V
Voltage Rating - DC	-	42 V

KEYLOCK SWITCH 2 POSITIONS REST(A)-MAINTAINED SA 2NC+2NO ST 18X18 GOLD/SILVER 311

Part	Depth Behind Flange	Angle of Throw	Features	Contact Timing	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Number of Positions	Key Removable Positions	Termination Style	Current Rating (Amps)	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Circuit	Ingress Protection	Mounting Type	Reset Operation	Voltage Rating - DC
EAO 51-256.025D	34 mm	90 °	IP65	Not Specified	250 V	16 mm	2	1 only	Solder Lug	5 A	Off-On, On-Off	55 °C	-25 °C	Flat Key	4PST-2NO/2NC
EAO 51-256.025					250 V	16 mm			Solder Lug	5 A	Off-On, On-Off	55 °C	-25 °C		DPST-NO/NC	IP65 - Dust Tight, Water Resistant	Panel Mount, Front	Twist
EAO 51-256.026					42 V	16 mm			PC Pin, Solder Lug	100 mA	On-Off	55 °C	-25 °C		SPST-NC	IP65 - Dust Tight, Water Resistant	Panel Mount, Front	Twist	42 V
