SIT9375AI-01P3-3310-125.000000E

Active

SiTime

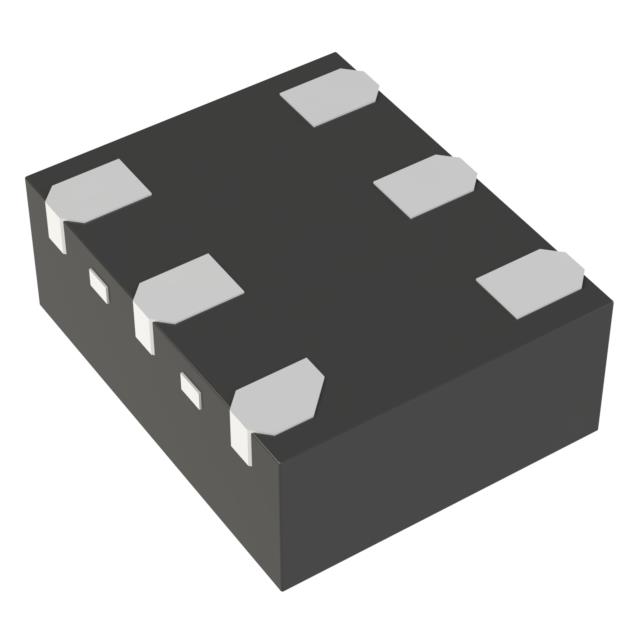

MEMS OSC XO 125MHZ LVPECL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SIT9375AI-01P3-3310-125.000000E

Active

SiTime

MEMS OSC XO 125MHZ LVPECL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SIT9375AI-01P3-3310-125.000000E	SIT9375 Series

Base Resonator	MEMS	MEMS
Current - Supply (Disable) (Max)	-	48 - 61 mA
Current - Supply (Max) [Max]	42.5 mA	38 - 68 mA
Frequency	125 MHz	25 - 644.53125 MHz
Frequency Stability	50 ppm	20 - 50 ppm
Function	Enable/Disable	Enable/Disable
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 - 0.9 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 - 0.035 "
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	70 - 203 °C
Operating Temperature [Min]	-40 °C	-40 - -20 °C
Output	LVPECL	LVDS, LVPECL, HCSL
Package / Case	6-SMD, No Lead	6-SMD, No Lead, 4-SMD, No Lead
Size / Dimension [x]	2 mm	2 - 3.2 mm
Size / Dimension [x]	0.079 in	0.079 - 0.126 "
Size / Dimension [y]	0.063 in	0.063 - 0.098 in
Size / Dimension [y]	1.6 mm	1.6 - 2.5 mm
Supplier Device Package	6-PQFN (2x1.6)	6-PQFW (2.5x2), 6-PQFN (2x1.6), 6-PQFD (3.2x2.5)
Type	XO (Standard)	XO (Standard)
Voltage - Supply	3.3 V	1.8 - 3.3 V
Voltage - Supply	-	3.63 V
Voltage - Supply	-	1.71 - 2.25 V

SIT9375 Series

MEMS OSC XO 161.132813MHZ LVDS

...

Part	Function	Base Resonator	Mounting Type	Frequency Stability	Voltage - Supply	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Supply (Max) [Max]	Output	Frequency	Type	Current - Supply (Disable) (Max) [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]
SiTime SIT9375AI-02A3-1810-161.132813E	Enable/Disable	MEMS	Surface Mount	50 ppm	1.8 V	6-PQFW (2.5x2)	85 °C	-40 °C	0.098 "	2 mm	2.5 mm	0.079 in	6-SMD, No Lead	0.035 "	0.9 mm	39 mA	LVDS	161.132813 MHz	XO (Standard)
SiTime SIT9375AE-01P1-3310-644.531250E	Enable/Disable	MEMS	Surface Mount	20 ppm	3.3 V		105 ░C	-40 °C	0.079 in	1.6 mm	2 mm	0.063 in	6-SMD, No Lead	0.031 "	0.8 mm	42.5 mA	LVPECL	644.53125 MHz	XO (Standard)
SiTime SIT9375AI-02B1-1810-156.250000E	Enable/Disable	MEMS	Surface Mount	20 ppm	1.8 V		85 °C	-40 °C	0.126 in	2.5 mm	3.2 mm	0.098 in	6-SMD, No Lead	0.035 "	0.9 mm	39 mA	LVDS	156.25 MHz	XO (Standard)
SiTime SIT9375AI-02B3-1810-50.000000E	Enable/Disable	MEMS	Surface Mount	50 ppm	1.8 V		85 °C	-40 °C	0.126 in	2.5 mm	3.2 mm	0.098 in	6-SMD, No Lead	0.035 "	0.9 mm	39 mA	LVDS	50 MHz	XO (Standard)
SiTime SIT9375AE-02P1-2510-333.330000E	Enable/Disable	MEMS	Surface Mount	20 ppm	2.5 V		105 ░C	-40 °C	0.079 in	1.6 mm	2 mm	0.063 in	6-SMD, No Lead	0.031 "	0.8 mm	39 mA	LVDS	333.33 MHz	XO (Standard)
SiTime SIT9375AE-02P1-2510-125.000000E	Enable/Disable	MEMS	Surface Mount	20 ppm	2.5 V	6-PQFN (2x1.6)	105 ░C	-40 °C	0.079 in	1.6 mm	2 mm	0.063 in	6-SMD, No Lead	0.031 "	0.8 mm	39 mA	LVDS	125 MHz	XO (Standard)
SiTime SIT9375AE-04P3-3310-322.265625E	Enable/Disable	MEMS	Surface Mount	50 ppm	3.3 V	6-PQFN (2x1.6)	105 ░C	-40 °C	0.079 in	1.6 mm	2 mm	0.063 in	6-SMD, No Lead	0.031 "	0.8 mm	38 mA	HCSL	322.265625 MHz	XO (Standard)
SiTime SIT9375AE-02P1-YY10-125.000000	Enable/Disable	MEMS	Surface Mount	20 ppm			105 ░C	-40 °C	0.079 in	1.6 mm	2 mm	0.063 in	4-SMD, No Lead	0.031 "	0.8 mm	39 mA	LVDS	125 MHz	XO (Standard)	48 mA	3.63 V	1.71 V
SiTime SIT9375AE-04P3-3310-333.330000E	Enable/Disable	MEMS	Surface Mount	50 ppm	3.3 V	6-PQFN (2x1.6)	105 ░C	-40 °C	0.079 in	1.6 mm	2 mm	0.063 in	6-SMD, No Lead	0.031 "	0.8 mm	38 mA	HCSL	333.33 MHz	XO (Standard)
SiTime SIT9375AI-02P3-1810-25.000000E	Enable/Disable	MEMS	Surface Mount	50 ppm	1.8 V		85 °C	-40 °C	0.079 in	1.6 mm	2 mm	0.063 in	6-SMD, No Lead	0.031 "	0.8 mm	39 mA	LVDS	25 MHz	XO (Standard)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 4.62

Description

General part information

SIT9375 Series

125 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
