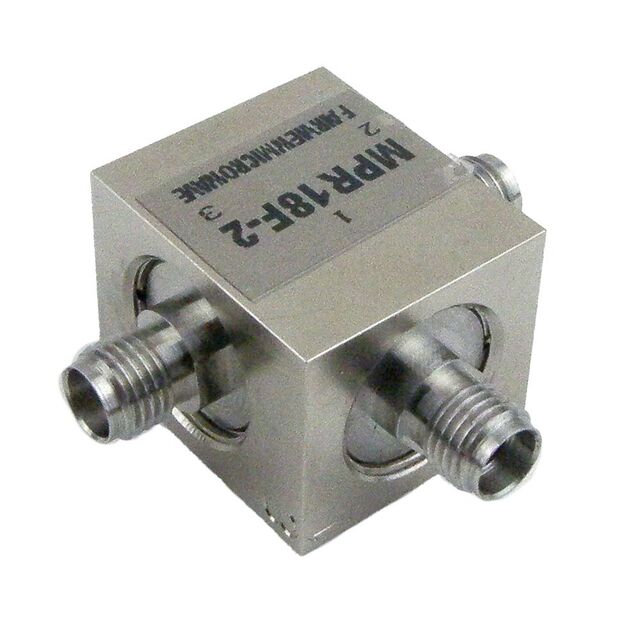

MPR18F-2
ActiveFairview Microwave
POWER DIVIDER 18 GHZ SMA
MPR18F-2
ActiveFairview Microwave
POWER DIVIDER 18 GHZ SMA
Description
General part information
MPR18F-2
RF Power Divider 0 Hz ~ 18 GHz 1.35 VSWR (Max) Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | MPR18F-2 |
|---|---|
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 0 Hz |
| Insertion Loss | 7.5 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Height | 0.681 in |
| Size / Dimension Length | 0.858 in |
| Size / Dimension Width | 0.752 in |
| VSWR (Max) | 1.35 |
