SCRH6D38-150
ActiveSignal Transformer
FIXED IND 15UH 1.6A 57 MOHM SMD
SCRH6D38-150
ActiveSignal Transformer
FIXED IND 15UH 1.6A 57 MOHM SMD
Description
General part information
SCRH6D38-150

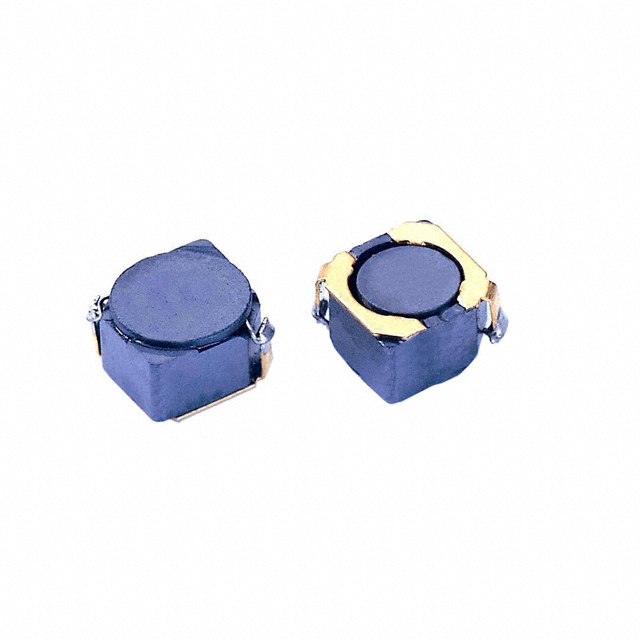

15 µH Shielded Inductor 1.6 A 57mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SCRH6D38-150 |
|---|---|
| Current - Saturation (Isat) | 1.6 A |
| Current Rating | 1.6 A |
| DC Resistance (DCR) (Max) | 57 mOhm |
| Height - Seated (Max) | 0.157 in |
| Inductance | 15 µH |
| Inductance Frequency - Test | 10 kHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.283 in |
| Size / Dimension Width | 0.283 in |
| Tolerance | 30 % |
