QSD123A4R0
ActiveON Semiconductor
PLASTIC SILICON INFRARED PHOTOTRANSISTOR/ REEL
QSD123A4R0
ActiveON Semiconductor
PLASTIC SILICON INFRARED PHOTOTRANSISTOR/ REEL
Description
General part information
QSD123A4R0

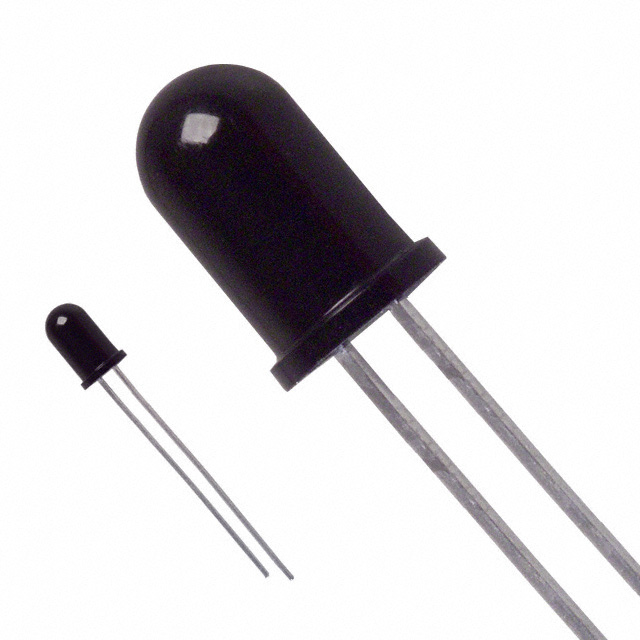

The QSD122, QSD123, QSD124 is a silicon phototransistor encapsulated in an infrared transparent, black T-1 3/4 package.
Technical Specifications
Parameters and characteristics for this part
| Specification | QSD123A4R0 |
|---|---|
| Current - Collector (Ic) (Max) | 0.016 mA |
| Current - Dark (Id) (Max) | 100 nA |
| Mounting Type | Through Hole |
| Orientation | Top View |
| Package Diameter | 5 mm |
| Package Name | Radial |
| Power - Max | 100 mW |
| Viewing Angle | 24 ° |
| Voltage - Collector Emitter Breakdown (Max) | 30 V |
| Wavelength | 880 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
