93351404
ActiveSAB North America

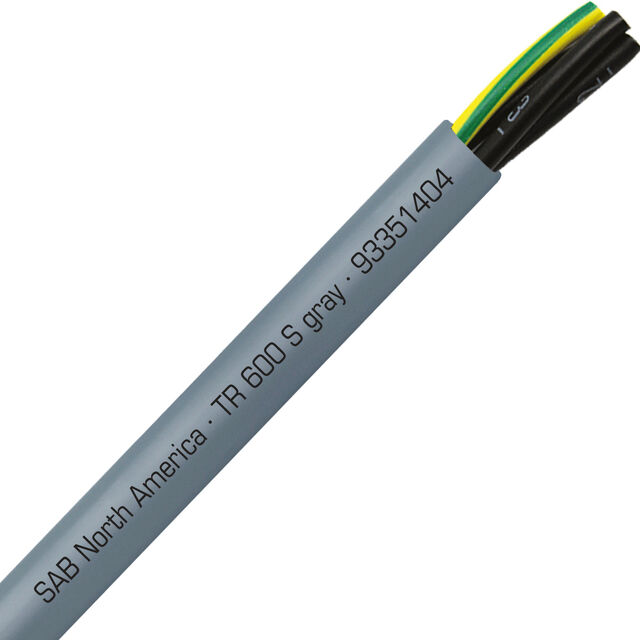

CABLE 4COND 14 AWG GRAY 1=1FT
93351404
ActiveSAB North America
CABLE 4COND 14 AWG GRAY 1=1FT
Description
General part information
93351404
4 Conductor Multi-Conductor Cable Gray 14 AWG Enter Number of Feet in Order Quantity
Technical Specifications
Parameters and characteristics for this part
| Specification | 93351404 |
|---|---|
| Cable Type | Conductor, Multi |
| Conductor Insulation | Nylon, Poly-Vinyl Chloride (PVC), Polyamide (PA) |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 41 |
| Conductor Strand Gauge | 30 |
| Features | Oil Resistant, UV Resistant, Flame Retardant |
| Jacket (Insulation) Diameter | 0.396 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 4 |
| Operating Temperature | 90 °C |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Ratings | UL, TC-ER, Style |
| Usage | Industrial, Signal, Control |
| Voltage | 600 V |
| Wire Gauge | 14 AWG |
