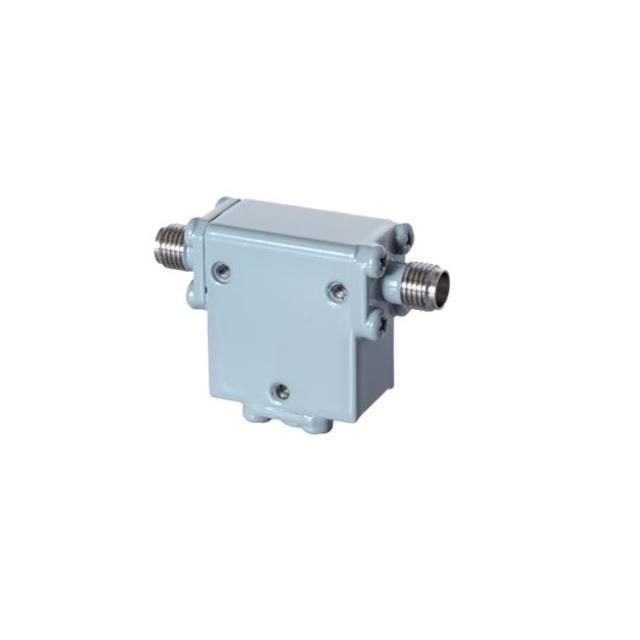

DHI8012-2
ActiveDiTom Microwave
8.00 - 12.00 GHZ HI-REL ISOLATOR
DHI8012-2
ActiveDiTom Microwave
8.00 - 12.00 GHZ HI-REL ISOLATOR
Description
General part information
DHI8012-2
8.00 - 12.00 GHZ HI-REL ISOLATOR
Technical Specifications
Parameters and characteristics for this part
| Specification | DHI8012-2 |
|---|---|
| Connector Type | SMA-MALE, SMA-FEMALE |
| Frequency (Max) | 12.4 GHz |
| Frequency (Min) | 8 GHz |
| Insertion Loss (Max) | 0.5 dB |
| Isolation (Min) | 20 dB |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| Power - Average Forward | 25 W |
| Type | Isolator |
| VSWR | 1.25 |
