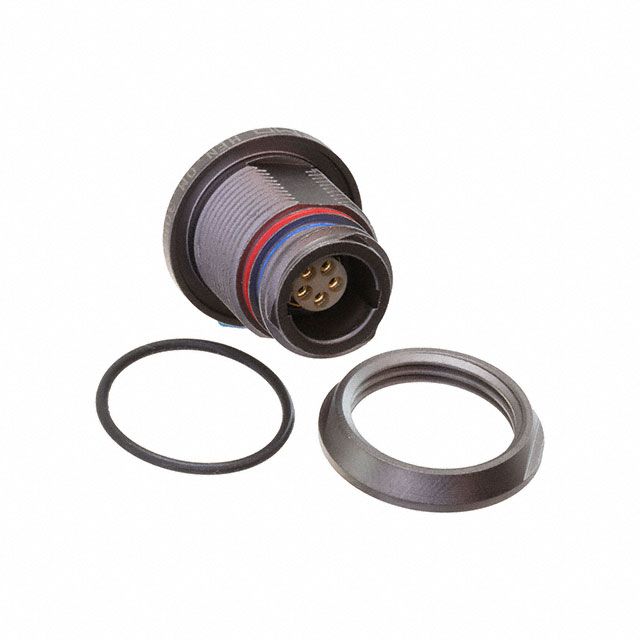

HEN.0M.305.XLNP
ActiveLEMO
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HEN.0M.305.XLNP
ActiveLEMO
CONN RCPT FMALE 5POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HEN.0M.305.XLNP | HEN.0M Series |
|---|---|---|
| Applications | Military, Aerospace, Automotive, Aviation | Military, Aerospace, Automotive, Aviation |
| Color | Gray | Gray |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 6.5 A | 6.5 - 10 A |
| Features | Potted | Potted |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | - | 2 - 4 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Aluminum Alloy | Aluminum Alloy |
| Shell Size - Insert | 305 | 302 - 305 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
HEN.0M Series
CONN RCPT FMALE 5POS GOLD SOLDER
| Part | Features | Mounting Feature | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Orientation | Shell Material | Insert Material | Color | Current Rating (Amps) | Contact Finish - Mating | Shell Finish | Applications | Shielding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Mounting Type | Primary Material | Contact Material | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO HEN.0M.305.XLNP | Potted | Bulkhead - Front Side Nut | 305 | -20 C | 80 C | IP68 - Dust Tight, Waterproof | N | Aluminum Alloy | Polyetheretherketone (PEEK) | Gray | 6.5 A | Gold | Nickel | Aerospace, Automotive, Aviation, Military | Shielded | 59 Áin | 1.5 Ám | Solder | Panel Mount, Through Hole | Metal | Bronze | Receptacle, Female Sockets | |
LEMO HEN.0M.302.XLNP | Potted | Bulkhead - Front Side Nut | 302 | -20 C | 80 C | IP68 - Dust Tight, Waterproof | N | Aluminum Alloy | Polyetheretherketone (PEEK) | Gray | 10 A | Gold | Nickel | Aerospace, Automotive, Aviation, Military | Shielded | 59 Áin | 1.5 Ám | Solder | Panel Mount, Through Hole | Metal | Bronze | Receptacle, Female Sockets | 2 |
LEMO HEN.0M.304.XLNP | Potted | Bulkhead - Front Side Nut | 304 | -20 C | 80 C | IP68 - Dust Tight, Waterproof | N | Aluminum Alloy | Polyetheretherketone (PEEK) | Gray | 7 A | Gold | Nickel | Aerospace, Automotive, Aviation, Military | Shielded | 59 Áin | 1.5 Ám | Solder | Panel Mount, Through Hole | Metal | Bronze | Receptacle, Female Sockets | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 83.19 | |
| 10 | $ 64.64 | |||
| 25 | $ 58.77 | |||
| 50 | $ 54.81 | |||
| 100 | $ 51.23 | |||
Description
General part information
HEN.0M Series
5 Position Circular Connector Receptacle, Female Sockets Solder
