0495050.U

Obsolete

LITTELFUSE

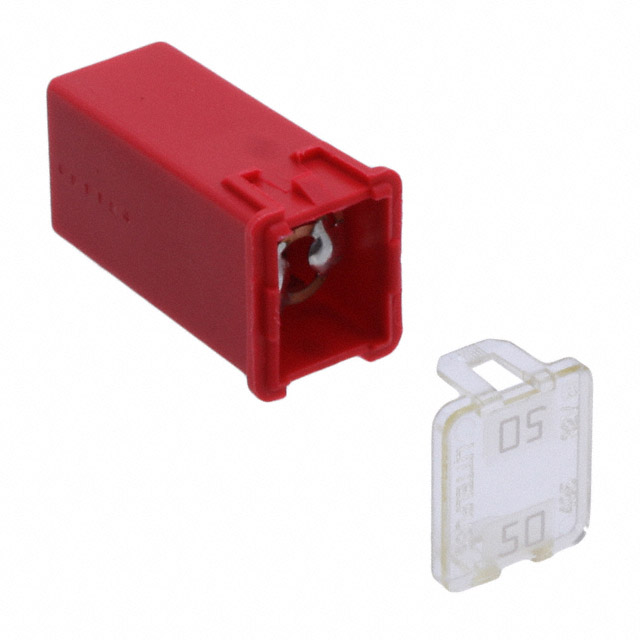

FUSE AUTO 50A 32VDC AUTO LINK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet JFHR2-E71611 Special Purpose Fuses Component Certification +1

0495050.U

Obsolete

LITTELFUSE

FUSE AUTO 50A 32VDC AUTO LINK

Deep-Dive with AI

DocumentsDatasheet JFHR2-E71611 Special Purpose Fuses Component Certification +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	0495050.U	0495050 Series

Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Red	Red
Current Rating (Amps)	50 A	50 A
DC Cold Resistance	0.00099 Ohms	0.00099 Ohms
Fuse Type	Automotive	Automotive
Melting I²t	8750	8750
Mounting Type	Requires Holder	Requires Holder
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Auto Link	Auto Link
Response Time	Slow Blow	Slow Blow, Medium Blow
Size / Dimension [x]	0.555 "	0.555 "
Size / Dimension [x]	14.1 mm	14.1 mm
Size / Dimension [y]	12 mm	12 mm
Size / Dimension [y]	0.472 "	0.472 "
Size / Dimension [z]	27 mm	27 mm
Size / Dimension [z]	1.063 "	1.063 "
Voltage Rating - DC	32 V	32 V

0495050 Series

Fuse - JCase 32V 50A 500 pc

Part	Breaking Capacity @ Rated Voltage	Current Rating (Amps)	DC Cold Resistance	Voltage Rating - DC	Mounting Type	Fuse Type	Color	Package / Case	Melting I²t	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Response Time	Operating Temperature [Max]	Operating Temperature [Min]
LITTELFUSE 0495050.U	1 kA	50 A	0.00099 Ohms	32 V	Requires Holder	Automotive	Red	Auto Link	8750	27 mm	12 mm	0.555 "	0.472 "	14.1 mm	1.063 "	Slow Blow	125 °C	-40 °C
LITTELFUSE 0495050.Z	1 kA	50 A	0.00099 Ohms	32 V	Requires Holder	Automotive	Red	Auto Link	8750	27 mm	12 mm	0.555 "	0.472 "	14.1 mm	1.063 "	Medium Blow	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

0495050 Series

The JCASE™ is a cartridge style fuse with female terminal design, providing both increased time delay and low voltage drop to protect high current circuits and handle inrush currents. The JCASE™ was designed and patented by Littelfuse.
