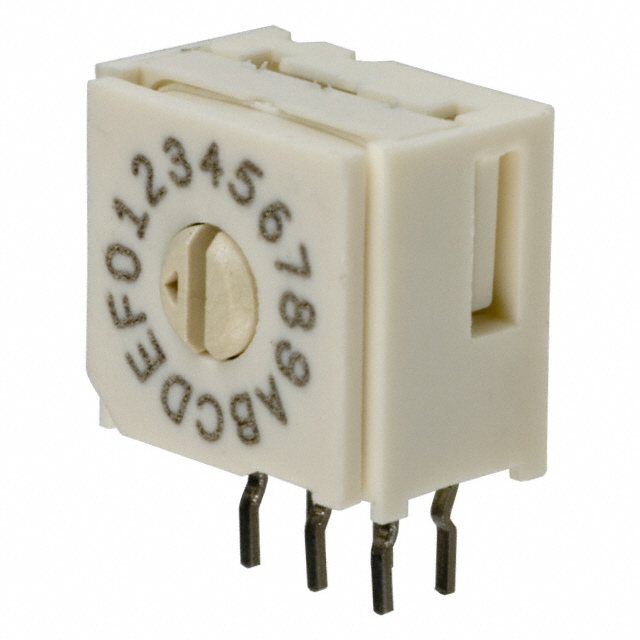

94HAB16RAT

Active

Grayhill Inc.

ASM,16PS F RA B R/DIP,LF ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Grayhill Inc.

ASM,16PS F RA B R/DIP,LF ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	94HAB16RAT	94HAB16 Series

Actuator Level	Flush, Recessed	Flush, Recessed
Actuator Type	Rotary for Tool	Rotary for Tool
Body Material	Plastic	Plastic
Circuit	Hexadecimal	Hexadecimal
Contact Finish	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	100 mA	100 mA
Features	Sealed	Sealed
Height Above Board	-	0.225 - 0.25 in
Height Above Board	-	5.72 - 6.35 mm
Height Above Board [z]	10.16 mm	10.16 mm
Height Above Board [z]	0.4 "	0.4 "
Length	10.92 mm	9.91 - 10.92 mm
Length	-	0.39 "
Length [x]	0.43 in	0.43 in
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Through Hole, Right Angle	Surface Mount, Through Hole, Right Angle, Through Hole
Number of Positions	16	16
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	Gull Wing, PC Pin, J Lead
Voltage Rating	50 V	50 V
Washable	True	True

SWITCH ROTARY DIP HEX 0.1A 50V

Part	Mechanical Life	Actuator Type	Features	Voltage Rating	Length	Length	Contact Finish	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board	Height Above Board	Termination Style	Number of Positions	Mounting Type	Body Material	Pitch [x]	Pitch	Pitch [x]	Contact Material	Actuator Level	Current Rating (Amps)	Height Above Board [z]	Height Above Board [z]	Length [x]
Grayhill Inc. 94HAB16WRT	10000 Steps	Rotary for Tool	Sealed	50 V	0.39 "	9.91 mm	Gold	Hexadecimal	85 °C	-40 °C	0.225 in	5.72 mm	Gull Wing	16	Surface Mount	Plastic	0.1 in	Full	2.54 mm	Copper Alloy	Flush, Recessed	100 mA
Grayhill Inc. 94HAB16RAT	10000 Steps	Rotary for Tool	Sealed	50 V		10.92 mm	Gold	Hexadecimal	85 °C	-40 °C			PC Pin	16	Through Hole, Right Angle	Plastic	0.1 in	Full	2.54 mm	Copper Alloy	Flush, Recessed	100 mA	10.16 mm	0.4 "	0.43 in
Grayhill Inc. 94HAB16JRT	10000 Steps	Rotary for Tool	Sealed	50 V	0.39 "	9.91 mm	Gold	Hexadecimal	85 °C	-40 °C	0.25 in	6.35 mm	J Lead	16	Surface Mount	Plastic	0.1 in	Full	2.54 mm	Copper Alloy	Flush, Recessed	100 mA
Grayhill Inc. 94HAB16T	10000 Steps	Rotary for Tool	Sealed	50 V	0.39 "	9.91 mm	Gold	Hexadecimal	85 °C	-40 °C	0.225 in	5.72 mm	PC Pin	16	Through Hole	Plastic	0.1 in	Full	2.54 mm	Copper Alloy	Flush, Recessed	100 mA
Grayhill Inc. 94HAB16WT	10000 Steps	Rotary for Tool	Sealed	50 V	0.39 "	9.91 mm	Gold	Hexadecimal	85 °C	-40 °C	0.225 in	5.72 mm	Gull Wing	16	Surface Mount	Plastic	0.1 in	Full	2.54 mm	Copper Alloy	Flush, Recessed	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 50VDC
