Description
General part information
TPL903218-S5TR

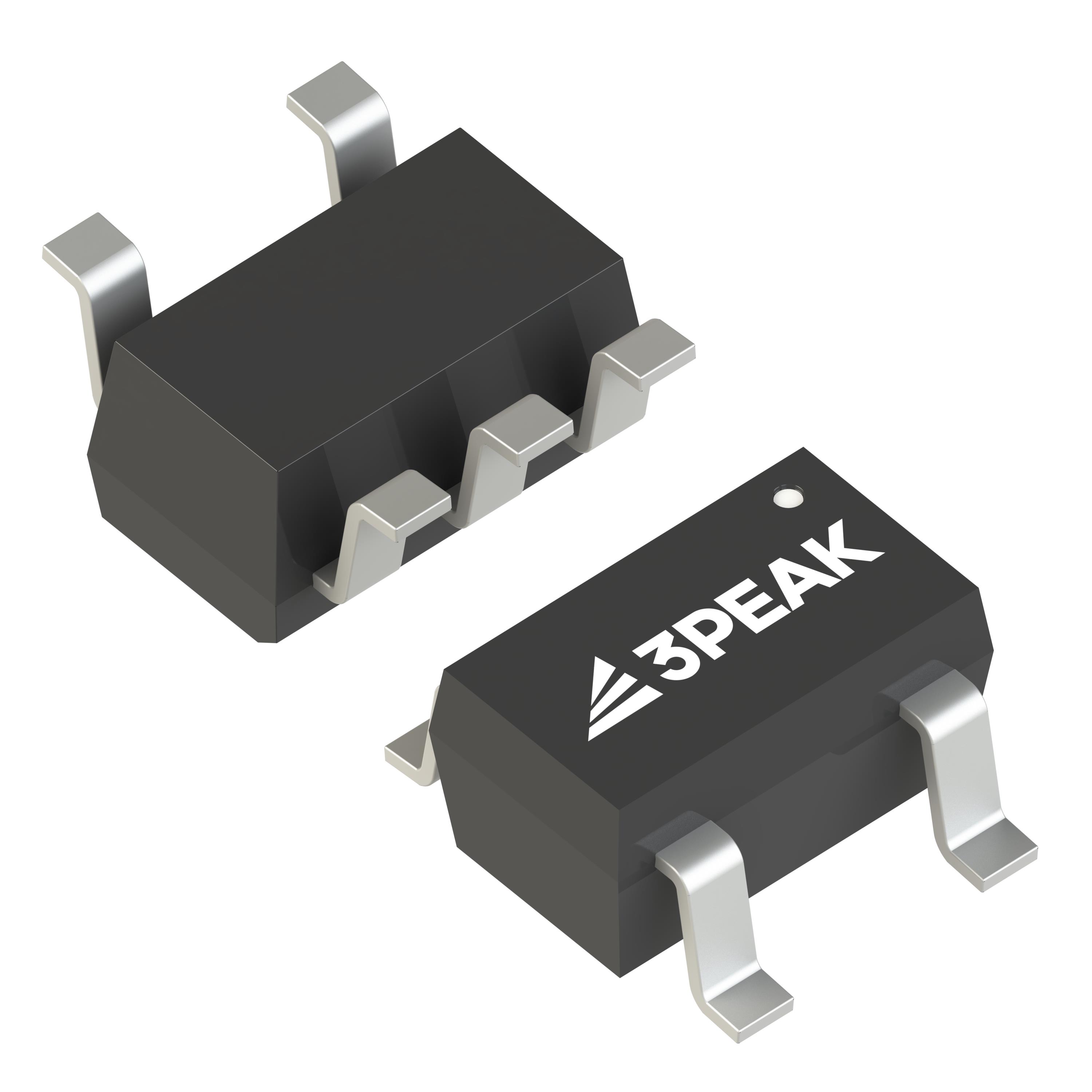

Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-5
Technical Specifications
Parameters and characteristics for this part
| Specification | TPL903218-S5TR |
|---|---|
| Control Features | Enable |
| Current - Output | 300 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Output Configuration | Positive |
| Output Type | Fixed |
| Package Name | SOT-23-5 |
| Protection Features | Transient Voltage, Reverse Polarity, Over Current, Over Temperature |
| PSRR (Maximum) | 82.1 dB |
| PSRR (Minimum) | 44.7 dB |
| Voltage - Input (Max) | 5.5 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
