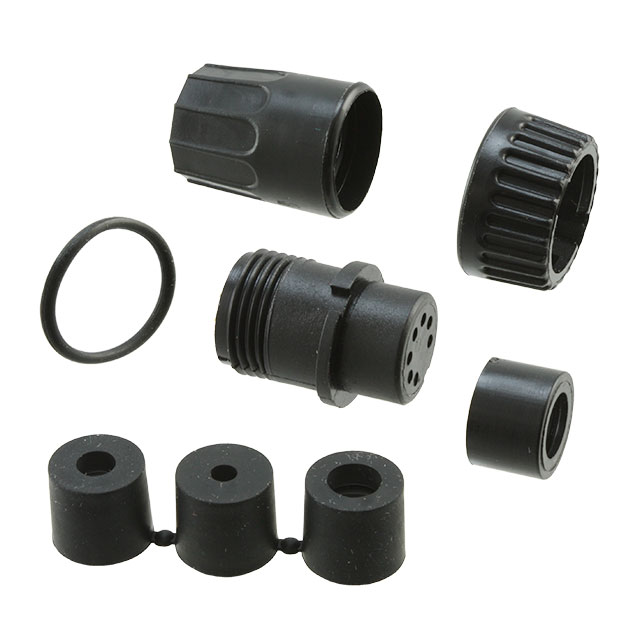

3282-7SG-3DC
ActiveConxall/Switchcraft
CONN PLUG FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
3282-7SG-3DC
ActiveConxall/Switchcraft
CONN PLUG FMALE 7P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3282-7SG-3DC | 3282-7S Series |
|---|---|---|
| Backshell Material, Plating | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Cable Opening | - | 5.33 - 7.11 mm |
| Cable Opening | - | 5.84 - 7.37 mm |
| Cable Opening | - | 0.21 - 0.28 in |
| Cable Opening | - | 0.23 - 0.29 in |
| Cable Opening | - | 0.15 - 0.17 in |
| Cable Opening | - | 3.81 - 4.32 mm |
| Color | Black | Black |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Brass | Brass |
| Current Rating (Amps) | 5.6 A | 5.6 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Backshell | Cable Clamp, Backshell |
| Ingress Protection | Weathertight | Weathertight |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 7 | 7 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Voltage Rating | 600 V | 600 V |
3282-7S Series
CONN PLUG FMALE 7P GOLD SLDR CUP
| Part | Voltage Rating | Orientation | Ingress Protection | Features | Backshell Material, Plating | Fastening Type | Contact Material | Color | Contact Finish - Mating | Current Rating (Amps) | Shielding | Mounting Type | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] [diameter] | Connector Type | Primary Material | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [custom] | Cable Opening [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 3282-7SG-521 | 600 V | Keyed | Weathertight | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Bayonet Lock | Brass | Black | Gold | 5.6 A | Unshielded | Free Hanging (In-Line) | 5.33 mm | 5.84 mm | 0.21 in | 0.23 in | Female Sockets, Plug | Plastic | 7 | -40 °C | 115 °C | ||
Conxall/Switchcraft 3282-7SG-328 | 600 V | Keyed | Weathertight | Backshell | Nylon, Polyamide (PA) | Bayonet Lock | Brass | Black | Gold | 5.6 A | Unshielded | Free Hanging (In-Line) | 7.11 mm | 7.37 mm | 0.28 in | 0.29 in | Female Sockets, Plug | Plastic | 7 | -40 °C | 115 °C | ||
Conxall/Switchcraft 3282-7SG-524 | 600 V | Keyed | Weathertight | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Bayonet Lock | Brass | Black | Gold | 5.6 A | Unshielded | Free Hanging (In-Line) | 6.1 mm | 6.86 mm | 0.24 in | 0.27 in | Female Sockets, Plug | Plastic | 7 | -40 °C | 115 °C | ||
Conxall/Switchcraft 3282-7SG-528 | 600 V | Keyed | Weathertight | Backshell, Cable Clamp | Nylon, Polyamide (PA) | Bayonet Lock | Brass | Black | Gold | 5.6 A | Unshielded | Free Hanging (In-Line) | 7.11 mm | 7.37 mm | 0.28 in | 0.29 in | Female Sockets, Plug | Plastic | 7 | -40 °C | 115 °C | ||
Conxall/Switchcraft 3282-7SG-315 | 600 V | Keyed | Weathertight | Backshell | Nylon, Polyamide (PA) | Bayonet Lock | Brass | Black | Gold | 5.6 A | Unshielded | Free Hanging (In-Line) | Female Sockets, Plug | Plastic | 7 | -40 °C | 115 °C | 0.15 in, 0.17 in | 3.81 mm, 4.32 mm | ||||
Conxall/Switchcraft 3282-7SG-3DC | 600 V | Keyed | Weathertight | Backshell | Nylon, Polyamide (PA) | Bayonet Lock | Brass | Black | Gold | 5.6 A | Unshielded | Free Hanging (In-Line) | Female Sockets, Plug | Plastic | 7 | -40 °C | 115 °C | ||||||
Conxall/Switchcraft 3282-7SG-324 | 600 V | Keyed | Weathertight | Backshell | Nylon, Polyamide (PA) | Bayonet Lock | Brass | Black | Gold | 5.6 A | Unshielded | Free Hanging (In-Line) | 6.1 mm | 6.86 mm | 0.24 in | 0.27 in | Female Sockets, Plug | Plastic | 7 | -40 °C | 115 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.07 | |
| 10 | $ 17.57 | |||
| 25 | $ 16.81 | |||
| 50 | $ 16.27 | |||
| 100 | $ 15.73 | |||
| 300 | $ 14.86 | |||
| 500 | $ 14.43 | |||
Description
General part information
3282-7S Series
7 Position Circular Connector Plug, Female Sockets Solder Cup
