82760 8771000
ActiveBelden Inc.

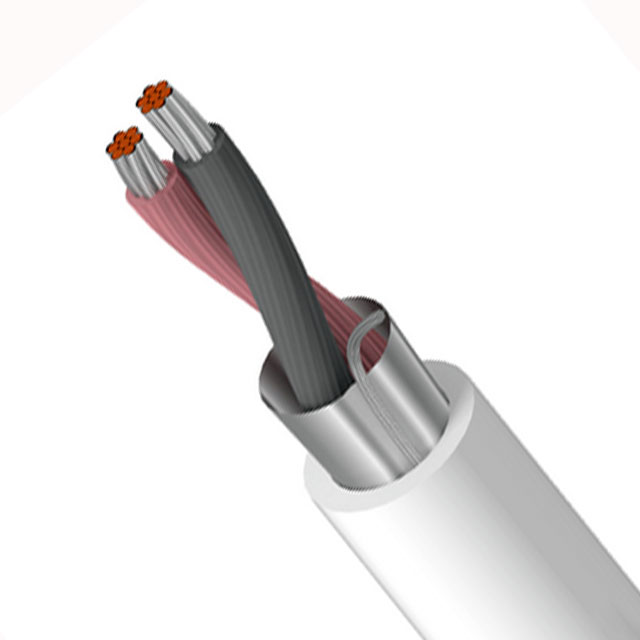

CABLE 2COND 18AWG NATURAL 1000'
Deep-Dive with AI
Search across all available documentation for this part.
82760 8771000
ActiveBelden Inc.
CABLE 2COND 18AWG NATURAL 1000'
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 82760 8771000 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Fluorinated Ethylene-Propylene (FEP) |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 19 |
| Conductor Strand [custom] | 30 AWG |
| Features | Drain Wire |
| Jacket (Insulation) Diameter [diameter] | 0.146 in |
| Jacket (Insulation) Diameter [diameter] | 3.71 mm |
| Jacket (Insulation) Material | Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum |
| Jacket (Insulation) Thickness | 0.356 mm |
| Jacket (Insulation) Thickness | 0.014 in |
| Jacket Color | Natural |
| Length | 1000 ft |
| Length | 304.8 m |
| Number of Conductors | 2 |
| Shield Coverage | 100 % |
| Shield Material | Aluminum |
| Shield Type | Foil |
| Voltage | 300 V |
| Wire Gauge | 18 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 2462.38 | |
Description
General part information
82760 Series
2 (1 Pair Twisted) Conductor Multi-Conductor Cable Natural 18 AWG Foil 1000.0' (304.8m)
