4-794680-2

Active

TE Connectivity AMP Connectors

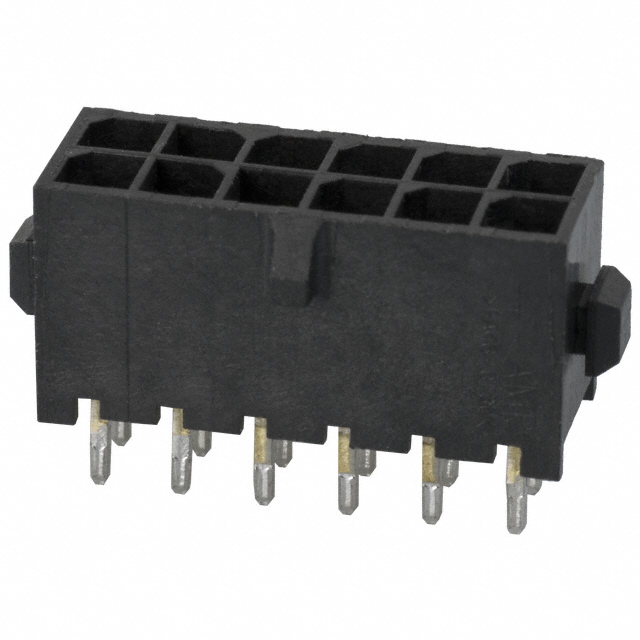

CONN HEADER VERT 12POS 3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4-794680-2

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 12POS 3MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-794680-2	794680 Series

Applications	General Purpose	General Purpose
Connector Type	Header	Header
Contact Finish - Mating	-	Tin-Lead
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	2.54 çm	2.54 çm
Contact Finish Thickness - Mating	100 çin	100 çin
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Post [x]	3.18 mm	3.18 mm
Contact Length - Post [x]	0.125 in	0.125 in
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	Black	Black
Insulation Height	9.25 mm	9.25 mm
Insulation Height	0.364 in	0.364 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	12	2 - 24
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch - Mating	0.118 in	0.118 in
Pitch - Mating	3 mm	3 mm
Row Spacing - Mating	3 mm	3 mm
Row Spacing - Mating	0.118 in	0.118 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder
Voltage Rating	250 VDC	250 VDC

794680 Series

CONN HEADER VERT 6POS 3MM

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Insulation Height	Insulation Height	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Post	Fastening Type	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Applications	Contact Material	Insulation Color	Number of Positions	Mounting Type	Contact Type	Style	Number of Positions Loaded	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions
TE Connectivity AMP Connectors 3-794680-6	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black	6	Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC	0.118 in	3 mm
TE Connectivity AMP Connectors 3-794680-8	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black	8	Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC	0.118 in	3 mm
TE Connectivity AMP Connectors 794680-2	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin-Lead	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black	2	Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC			Tin-Lead
TE Connectivity AMP Connectors 2-794680-4	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin-Lead	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black	24	Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC	0.118 in	3 mm	Tin-Lead
TE Connectivity AMP Connectors 4-794680-6	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black		Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC	0.118 in	3 mm		16
TE Connectivity AMP Connectors 3-794680-4	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black	4	Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC	0.118 in	3 mm
TE Connectivity AMP Connectors 1-794680-4	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin-Lead	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black	14	Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC	0.118 in	3 mm	Tin-Lead
TE Connectivity AMP Connectors 4-794680-0	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black	10	Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC	0.118 in	3 mm
TE Connectivity AMP Connectors 4-794680-4	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black	14	Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC	0.118 in	3 mm
TE Connectivity AMP Connectors 794680-8	Varies by Wire Gauge	-40 °C	105 ░C	Shrouded - 4 Wall	9.25 mm	0.364 in	Solder	UL94 V-0	2.54 çm	100 çin	Nylon, Polyamide (PA)	Tin-Lead	Locking Ramp	Square	3 mm	0.118 in	General Purpose	Brass	Black	8	Through Hole	Male Pin	Board to Cable/Wire	All	Header	3.18 mm	0.125 in	2	2.54 µm	100 µin	250 VDC	0.118 in	3 mm	Tin-Lead

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.42
		10	$ 1.29
		169	$ 1.16
		507	$ 1.12

Description

General part information

794680 Series

Connector Header Through Hole 12 position 0.118" (3.00mm)
