HA0401500000G

Active

AMPHENOL ANYTEK

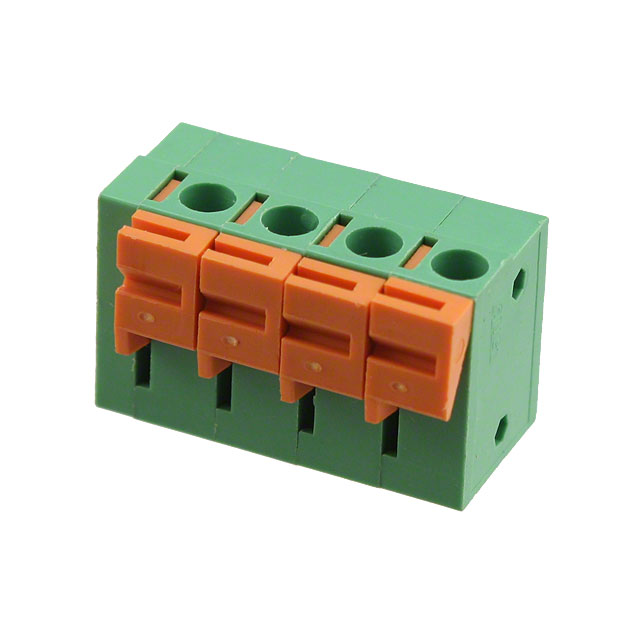

TERM BLK 4P SIDE ENT 5.08MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HA0401500000G

Active

AMPHENOL ANYTEK

TERM BLK 4P SIDE ENT 5.08MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.50
		10	$ 1.79
		25	$ 1.56
		50	$ 1.42
		100	$ 1.30
		250	$ 1.17
		500	$ 1.09
		2160	$ 0.98
		6480	$ 0.93

Description

General part information

HA04 Series

4 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HA0401500000G	HA04 Series

Clamp Material - Plating	Stainless, Steel	Stainless, Steel
Color	Green	Green
Contact Material - Plating	Copper Alloy - Tin Plated	Copper Alloy - Tin Plated
Contact Material - Plating	-	Brass - Tin Plated
Current	10 A	2 - 10 A
Features	Lever Actuated	Lever Actuated
Housing Material	Thermoplastic	Thermoplastic
Mating Orientation	Horizontal with Board	Vertical with Board, Horizontal with Board
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.1 - 0.394 in
Pitch [x]	5.08 mm	2.54 - 10 mm
Positions Per Level	4	4
Voltage	300 V	150 - 300 V
Wire Gauge [Max]	24 AWG	24 - 26 AWG
Wire Gauge [Min]	14 AWG	14 - 20 AWG
Wire Termination	Push-In Spring, Screwless - Leg Spring	Push-In Spring, Screwless - Leg Spring

HA04 Series

TERM BLK 4POS TOP ENTRY 10MM PCB

Part	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Features	Voltage	Mating Orientation	Pitch [x]	Pitch [x]	Wire Gauge [Min]	Wire Gauge [Max]	Contact Material - Plating [custom]	Clamp Material - Plating	Color	Current	Positions Per Level	Wire Termination	Number of Levels	Mounting Type	Contact Material - Plating
AMPHENOL ANYTEK HA0440500000G	-40 °C	115 °C	Thermoplastic	Lever Actuated	300 V	Vertical with Board	0.394 in	10 mm	14 AWG	24 AWG	Brass - Tin Plated	Stainless, Steel	Green	10 A	4	Push-In Spring, Screwless - Leg Spring	1	Through Hole
AMPHENOL ANYTEK HA0451500000G	-40 °C	115 °C	Thermoplastic	Lever Actuated	150 V	Horizontal with Board	0.1 in	2.54 mm	20 AWG	26 AWG	Brass - Tin Plated	Stainless, Steel	Green	2 A	4	Push-In Spring, Screwless - Leg Spring	1	Through Hole
AMPHENOL ANYTEK HA0401500000G	-40 °C	115 °C	Thermoplastic	Lever Actuated	300 V	Horizontal with Board	0.2 in	5.08 mm	14 AWG	24 AWG		Stainless, Steel	Green	10 A	4	Push-In Spring, Screwless - Leg Spring	1	Through Hole	Copper Alloy - Tin Plated
AMPHENOL ANYTEK HA0460500000G	-40 °C	115 °C	Thermoplastic	Lever Actuated	300 V	Vertical with Board	0.295 in	7.5 mm	14 AWG	24 AWG	Brass - Tin Plated	Stainless, Steel	Green	10 A	4	Push-In Spring, Screwless - Leg Spring	1	Through Hole
AMPHENOL ANYTEK HA0420500000G	-40 °C	115 °C	Thermoplastic	Lever Actuated	300 V	Vertical with Board	0.3 in	7.62 mm	14 AWG	24 AWG	Brass - Tin Plated	Stainless, Steel	Green	10 A	4	Push-In Spring, Screwless - Leg Spring	1	Through Hole
AMPHENOL ANYTEK HA0471500000G	-40 °C	115 °C	Thermoplastic	Lever Actuated	300 V	Horizontal with Board	0.15 in	3.81 mm	16 AWG	26 AWG		Stainless, Steel	Green	6 A	4	Push-In Spring, Screwless - Leg Spring	1	Through Hole	Copper Alloy - Tin Plated
AMPHENOL ANYTEK HA0470500000G	-40 °C	115 °C	Thermoplastic	Lever Actuated	300 V	Vertical with Board	0.15 in	3.81 mm	16 AWG	26 AWG		Stainless, Steel	Green	6 A	4	Push-In Spring, Screwless - Leg Spring	1	Through Hole	Copper Alloy - Tin Plated
