WM1811GECS/R
ObsoleteCirrus Logic Inc.
IC CODEC STEREO MULTI-CH 80BGA
WM1811GECS/R
ObsoleteCirrus Logic Inc.
IC CODEC STEREO MULTI-CH 80BGA
Description
General part information
WM1811GECS/R

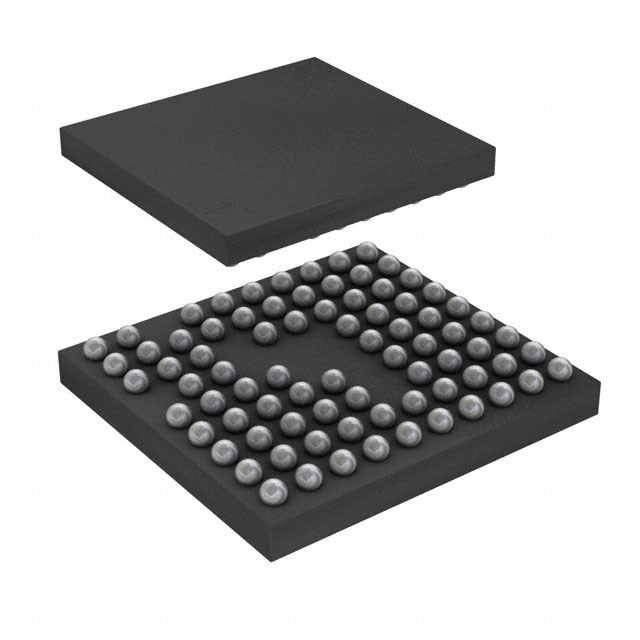

Audio Interface 24 b 80-WCSP (4.16x3.88)
Technical Specifications
Parameters and characteristics for this part
| Specification | WM1811GECS/R |
|---|---|
| Mounting Type | Surface Mount |
| Number of ADCs | 2 count |
| Number of DACs | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 80-UFBGA, WLCSP |
| Package Length | 4.16 mm |
| Package Name | 80-WCSP |
| Package Width | 3.88 mm |
| Resolution (Bits) | 24 b |
| Sigma Delta | Yes |
| Type | Audio |
| Voltage - Supply, Analog (Max) | 2 V |
| Voltage - Supply, Analog (Min) | 1.71 V |
| Voltage - Supply, Digital (Max) | 3.6 V |
| Voltage - Supply, Digital (Min) | 1.62 V |
