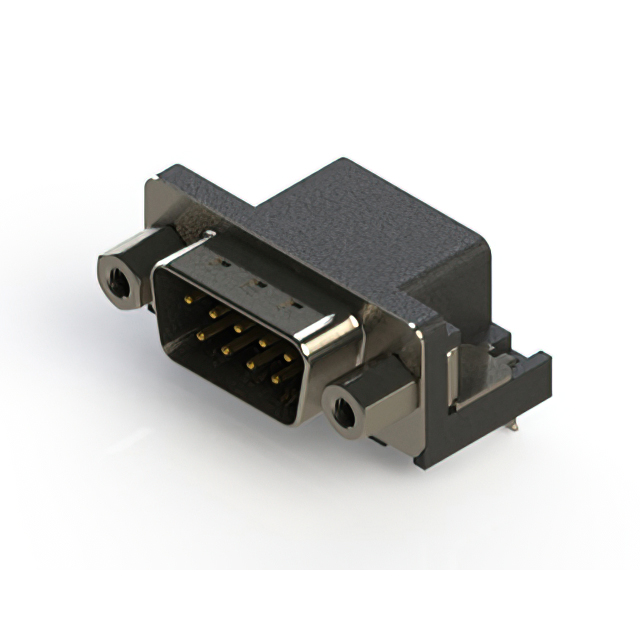

629-009-640-533

Active

EDAC Inc.

629 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

629-009-640-533

Active

EDAC Inc.

629 SERIES RIGHT ANGLE D-SUB PLU

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	629-009-640-533

Backset Spacing	0.409 in
Backset Spacing	10.4 mm
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Mounting Brackets, Grounding Indents, Shielded
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder

629-009 Series

Part	Material Flammability Rating	Mounting Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Contact Type	Contact Material	Number of Positions	Backset Spacing	Backset Spacing	Contact Finish	Connector Style	Current Rating (Amps)	Color	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Shell Material, Finish	Connector Type	Features	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Contact Finish Thickness
EDAC Inc. 629-009-340-031	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Housing/Shell (Unthreaded)	85 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	15 µin	0.38 µm	2
EDAC Inc. 629-009-640-042	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Housing/Shell (4-40)	85 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	30 Áin	0.76 Ám	2
EDAC Inc. 629-009-240-015	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Housing/Shell (M3)	85 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Grounding Indents Mounting Brackets Shielded			2	Flash
EDAC Inc. 629-009-240-513	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Female Screwlock (4-40) Mating Side	125 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Grounding Indents Mounting Brackets Shielded			2	Flash
EDAC Inc. 629-009-340-045	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Housing/Shell (M3)	85 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	15 µin	0.38 µm	2
EDAC Inc. 629-009-240-543	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Female Screwlock (4-40) Mating Side	125 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded			2	Flash
EDAC Inc. 629-009-340-532	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Housing/Shell (4-40)	125 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	15 µin	0.38 µm	2
EDAC Inc. 629-009-640-533	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Female Screwlock (4-40) Mating Side	125 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	30 Áin	0.76 Ám	2
EDAC Inc. 629-009-340-511	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Housing/Shell (Unthreaded)	125 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Grounding Indents Mounting Brackets Shielded	15 µin	0.38 µm	2
EDAC Inc. 629-009-640-031	UL94 V-0	Panel Mount Right Angle Through Hole	DE E	1	Polyester Thermoplastic	Signal	Copper Alloy	9	0.409 in	10.4 mm	Gold	D-Sub	3 A	Black	Housing/Shell (Unthreaded)	85 °C	-55 °C	Solder	Nickel Plated Steel	Male Pins Plug	Board Lock Grounding Indents Mounting Brackets Shielded	30 Áin	0.76 Ám	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 2.05

Description

General part information

629-009 Series

9 Position D-Sub Plug, Male Pins Connector
