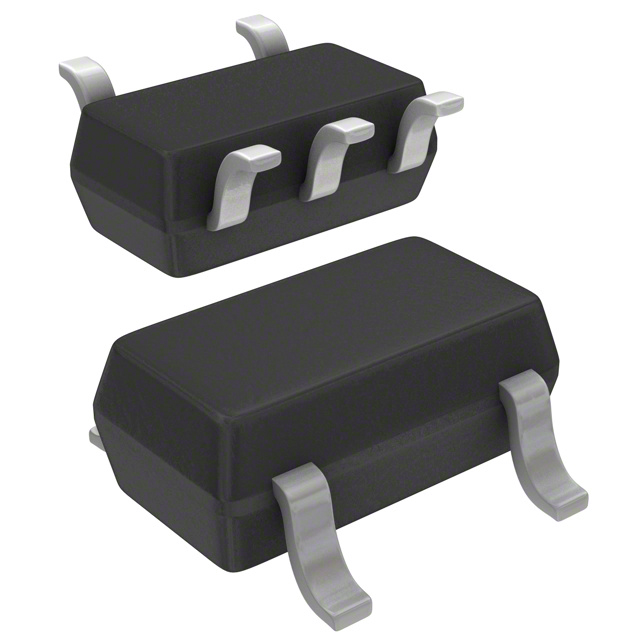

XRP6124ESTR0.5-F

MaxLinear, Inc.

IC REG CTRLR BUCK SOT23-5

Search across all available documentation for this part.

MaxLinear, Inc.

IC REG CTRLR BUCK SOT23-5

Technical Specifications

Parameters and characteristics commom to parts in this series

IC REG CTRLR BUCK SOT23-5

Part	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Output Phases	Number of Outputs	Control Features	Output Type	Package / Case	Frequency - Switching [Max]	Frequency - Switching [Min]	Mounting Type	Topology	Output Configuration	Supplier Device Package	Function
MaxLinear, Inc. XRP6124HVES0.5-F	4.5 V	30 V	-40 °C	125 ¯C	1	1	Enable	Transistor Driver	SC-74A, SOT-753	1 MHz	100 kHz	Surface Mount	Buck	Positive	SOT-23-5	Step-Down
MaxLinear, Inc. XRP6124HVESTR0.5-F	4.5 V	30 V	-40 °C	125 ¯C	1	1	Enable	Transistor Driver	SC-74A, SOT-753	1 MHz	100 kHz	Surface Mount	Buck	Positive	SOT-23-5	Step-Down
MaxLinear, Inc. XRP6124ESTR0.5-F	3 V	18 V	-40 °C	125 ¯C	1	1	Enable	Transistor Driver	SC-74A, SOT-753	833 kHz	200 kHz	Surface Mount	Buck	Positive	SOT-23-5	Step-Down

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Buck Regulator Positive Output Step-Down DC-DC Controller IC SOT-23-5
