Description
General part information

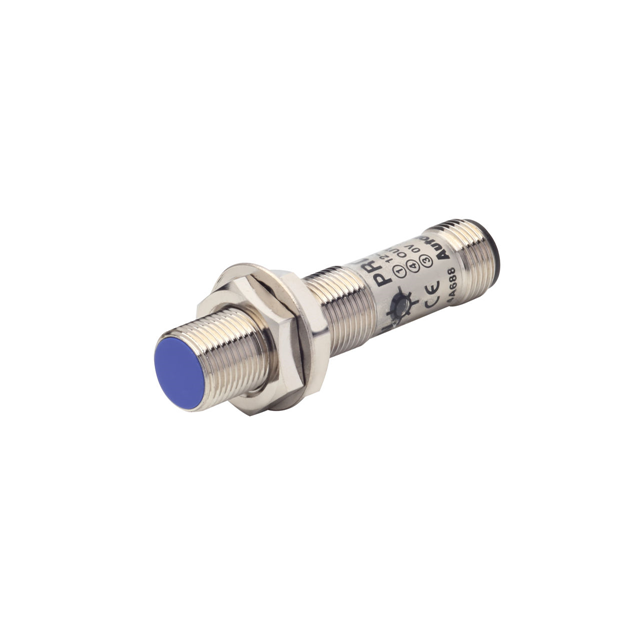

PRDCM12-4DP
SENSOR, INDUCTIVE PROX, M12 ROUND, CONNECTOR TYPE, SHIELDED, 4MM SENSING, PNP, NO, 3 WIRE, 10-30 VDC
Technical Specifications
Parameters and characteristics for this part
| Specification | PRDCM12-4DP |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Threaded - M12, Cylinder |
| Response Frequency | 500 Hz |
| Sensing Distance | 0.157 " |
| Sensor Type | Inductive |
| Shielding | Shielded |
| Termination Style | Connector |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 10 VDC |
