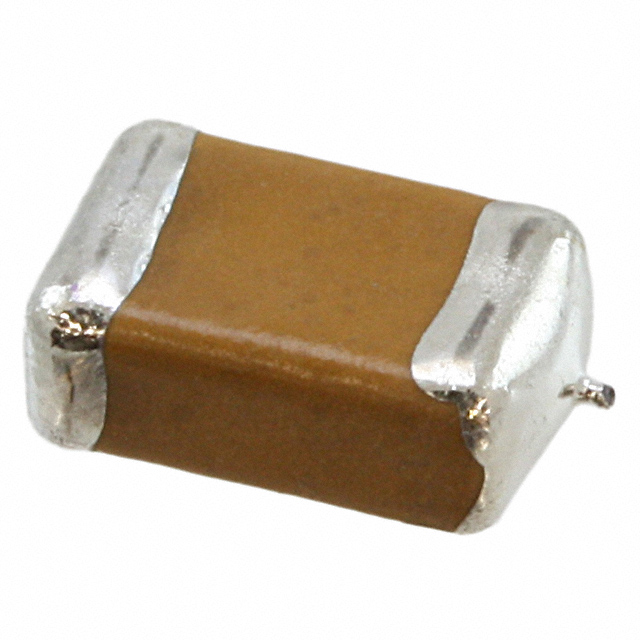

F751A337KDC
ActiveKYOCERA AVX
CAP TANT 330UF 10% 10V 2917
F751A337KDC
ActiveKYOCERA AVX
CAP TANT 330UF 10% 10V 2917
Description
General part information
F751A337KDC
330 µF Conformal Coated Tantalum Capacitors 10 V 2917 (7343 Metric) 150mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | F751A337KDC |
|---|---|
| Capacitance | 330 µF |
| ESR (Equivalent Series Resistance) | 150 mOhm |
| Features | General Purpose |
| Height - Seated (Max) | 0.122 in |
| Manufacturer Size Code | D |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 2917 (7343 Metric) |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.169 in |
| Tolerance | 10 % |
| Type | Conformal Coated |
| Voltage - Rated | 10 V |
