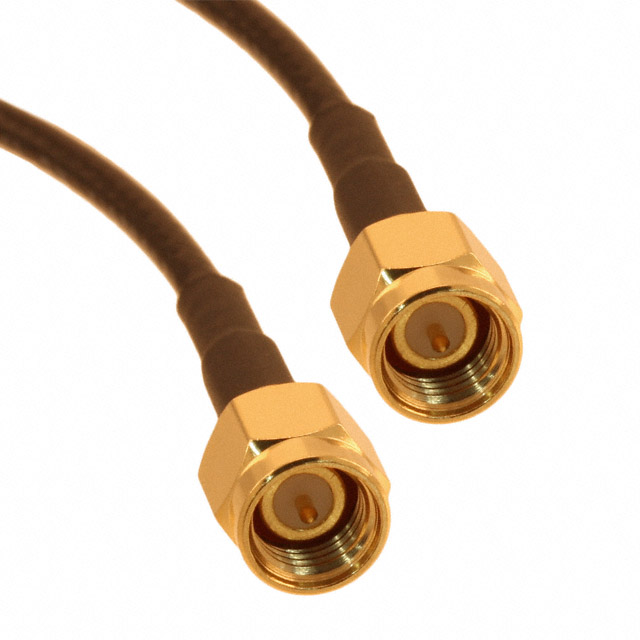

Specification	135101-02-03.00

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG, 174
Color	Black
Features	Shielded
Frequency - Max	3 GHz
Length	3 "
Overall Impedance	50 Ohms
Style	SMA

135101 Series

Part	Length	Cable Impedance	1st Contact Gender	2nd Connector	1st Connector Mounting Type	1st Connector	Features	Overall Impedance	Color	Style	Cable Type	2nd Contact Gender	Frequency - Max	2nd Connector Mounting Type	Cable Type Size
McGill Microwave Systems 135101-07-72.00	72 in	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	SMA Plug	Shielded	50 Ohms	Copper	SMA	142 RG	Male	12.4 GHz	Free Hanging (In-Line)
McGill Microwave Systems 135101-R1-M1.00	39.4 in		Male	SMA Plug	Free Hanging (In-Line)	SMA Plug		50 Ohms	Gray	SMA	Hand Formable	Male	12.4 GHz	Free Hanging (In-Line)	0.085
McGill Microwave Systems 135101-01-M0.75	29.53 in	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	SMA Plug	Shielded	50 Ohms	Copper	SMA	316 RG	Male	3 GHz	Free Hanging (In-Line)
McGill Microwave Systems 135101-02-24.00	24 in	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	SMA Plug	Shielded	50 Ohms	Black	SMA	174 RG	Male	3 GHz	Free Hanging (In-Line)
McGill Microwave Systems 135101-03-M0.50	19.69 in	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	SMA Plug	Shielded	50 Ohms	Copper	SMA	316 DS RG	Male	12.4 GHz	Free Hanging (In-Line)
McGill Microwave Systems 135101-07-12.00	12 in	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	SMA Plug	Shielded	50 Ohms	Copper	SMA	142 RG	Male	12.4 GHz	Free Hanging (In-Line)
McGill Microwave Systems 135101-R2-48.00	48 in		Male	SMA Plug	Free Hanging (In-Line)	SMA Plug		50 Ohms	Copper	SMA	Hand Formable	Male	12.4 GHz	Free Hanging (In-Line)	0.141
McGill Microwave Systems 135101-04-06.00	0.5 ft	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	SMA Plug	Shielded	50 Ohms	Black	SMA	58 RG	Male	1 GHz	Free Hanging (In-Line)
McGill Microwave Systems 135101-07-M0.75	29.53 in	50 Ohms	Male	SMA Plug	Free Hanging (In-Line)	SMA Plug	Shielded	50 Ohms	Copper	SMA	142 RG	Male	12.4 GHz	Free Hanging (In-Line)
McGill Microwave Systems 135101-R1-18.00	18 in		Male	SMA Plug	Free Hanging (In-Line)	SMA Plug		50 Ohms	Gray	SMA	Hand Formable	Male	12.4 GHz	Free Hanging (In-Line)	0.085
