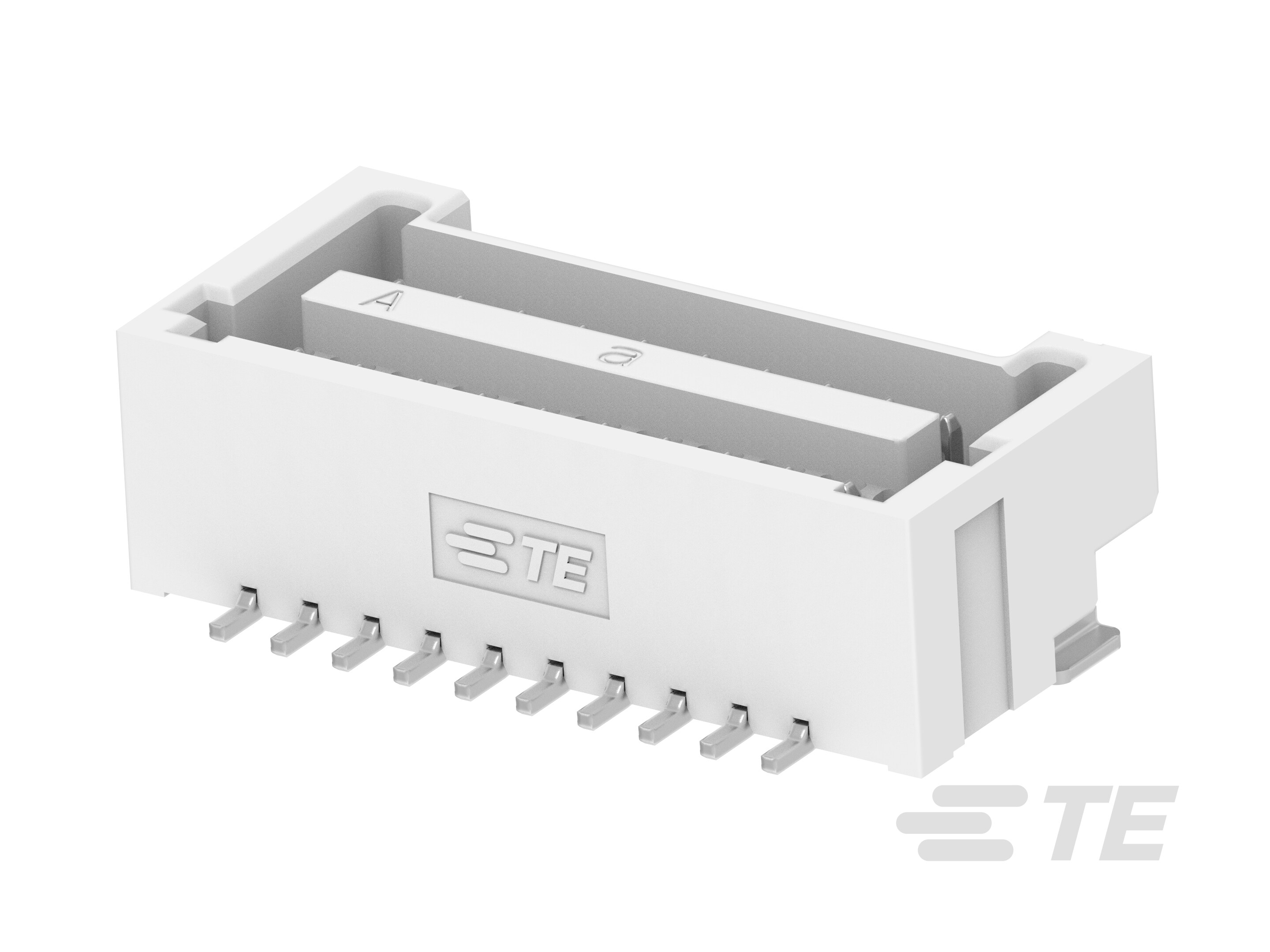

Specification	2-2456589-0

Connector Type	Header
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Contact Shape	Rectangular
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Natural
Insulation Height	0.193 in
Insulation Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.049 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	50 V
Voltage Rating (Type)	DC

GRACE INERTIA 1.25 Series

...

Part	Number of Positions	Contact Type	Insulation Height	Contact Finish Thickness - Mating	Contact Finish - Mating	Style	Number of Positions Loaded	Voltage Rating	Current Rating	Insulation Material	Termination	Mounting Type	Shrouding	Number of Rows	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Material Flammability Rating	Contact Finish - Post	Contact Shape	Fastening Type	Features	Insulation Color	Contact Material	Pitch - Mating	Current Rating	Voltage Rating (Type)	Color	Contact Termination	Pitch
TE Connectivity AMP Connectors 1-2360540-0	10	Male Pin	0.232 in	39.4 µin	Tin	Board Cable/Wire	All	50 V	1 A	Nylon 4T Polyamide (PA4T)	Solder	Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Push-Pull	Solder Retention	Natural	Brass	0.049 in
TE Connectivity AMP Connectors 2-2360538-8	8	Male Pin	0.193 in	39.4 µin	Tin	Board Cable/Wire	All	50 V	0 A	Nylon 4T Polyamide (PA4T)	Solder	Right Angle Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Push-Pull	Solder Retention	Black	Brass	0.049 in	Varies by Wire Gauge	DC
TE Connectivity AMP Connectors 2371404-2	2	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Natural	Crimp	0.049 in
TE Connectivity AMP Connectors 2371404-3	3	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Natural	Crimp	0.049 in
TE Connectivity AMP Connectors 2360540-5	5	Male Pin	0.232 in	39.4 µin	Tin	Board Cable/Wire	All	50 V	2.2 A	Nylon 4T Polyamide (PA4T)	Solder	Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Latch Holder	Solder Retention	Natural	Brass	0.049 in		DC
TE Connectivity AMP Connectors 1-2360540-7	17	Male Pin	0.232 in			Board Cable/Wire	All	50 V	0 A	Nylon 4T Polyamide (PA4T)	Solder	Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Friction Lock	Pick and Place Solder Retention	Natural	Brass	0.049 in	Varies by Wire Gauge	DC
TE Connectivity AMP Connectors 2-2371404-2	2	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Black	Crimp	0.049 in
TE Connectivity AMP Connectors 2360540-4	4	Male Pin	0.232 in	39.4 µin	Tin	Board Cable/Wire	All	50 V	2.2 A	Nylon 4T Polyamide (PA4T)	Solder	Surface Mount	Shrouded - 4 Wall	1	Header	-40 °C	105 °C	UL94 V-0	Tin	Square	Latch Holder	Solder Retention	Natural	Brass	0.049 in		DC
TE Connectivity AMP Connectors 1-2371404-5	15	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Natural	Crimp	0.049 in
TE Connectivity AMP Connectors 2-2371404-5	5	Female Socket								Nylon Polyamide (PA)		Free Hanging (In-Line)		1	Plug	-40 °C	105 °C				Latch Lock							Black	Crimp	0.049 in
