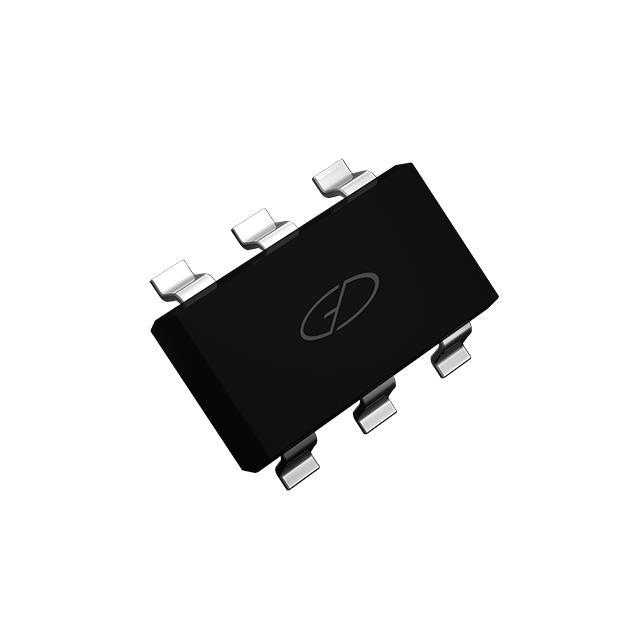

Specification	SSF2307

Current - Continuous Drain (Id) (Tc)	6.5 A
Drain to Source Voltage (Vdss)	20 V
Drive Voltage (Max Rds On)	1.8 V
Drive Voltage (Min Rds On)	4.5 V
FET Type	P-Channel
Gate Charge (Max)	29 nC
Input Capacitance (Ciss) (Max)	2430 pF
Mounting Type	Surface Mount
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	SOT-23-6
Package Name	SOT-23-6L
Power Dissipation (Max)	1.56 W
Rds On (Max)	23 mOhm
Technology	MOSFET (Metal Oxide)
Vgs (Max)	10 V
Vgs(th) (Max)	1 V
