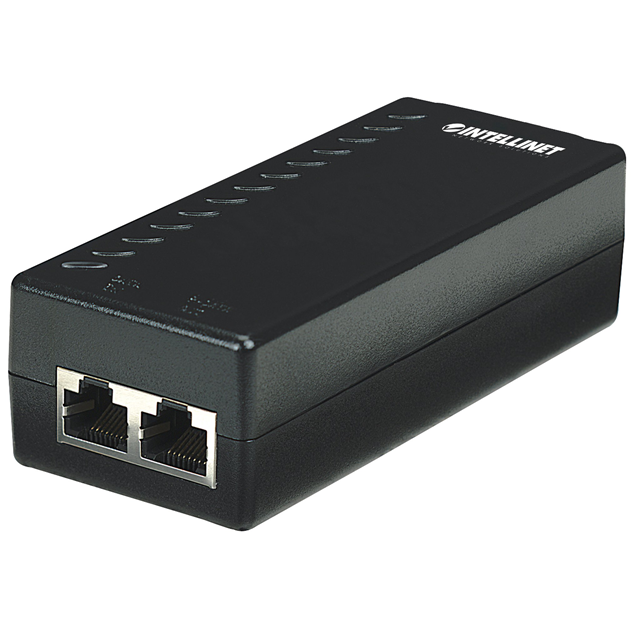

INT 524179
ActiveIntellinet
INJECTOR POE
INT 524179
ActiveIntellinet
INJECTOR POE
Description
General part information
INT 524179
48V Power Over Ethernet (POE) 2 Port Passive Injector 100 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | INT 524179 |
|---|---|
| Approval Agency | FCC, CE |
| Compliance | IEEE802.3af |
| Current - Output | 350 mA |
| Data Rate | 100 Mbps |
| Features | SCP, OVP |
| Input Connector | IEC 320-C14 (Power), RJ45 (Data) |
| Note | AC Power Cord Included |
| Number of Ports | 2 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 16.8 W |
| Size / Dimension Height | 1.4 in |
| Size / Dimension Length | 4.7 in |
| Size / Dimension Width | 2 in |
| Type | Passive Injector |
| Voltage - Input (AC) Maximum | 240 VAC |
| Voltage - Input (AC) Minimum | 100 VAC |
| Voltage - Output | 48 V |
