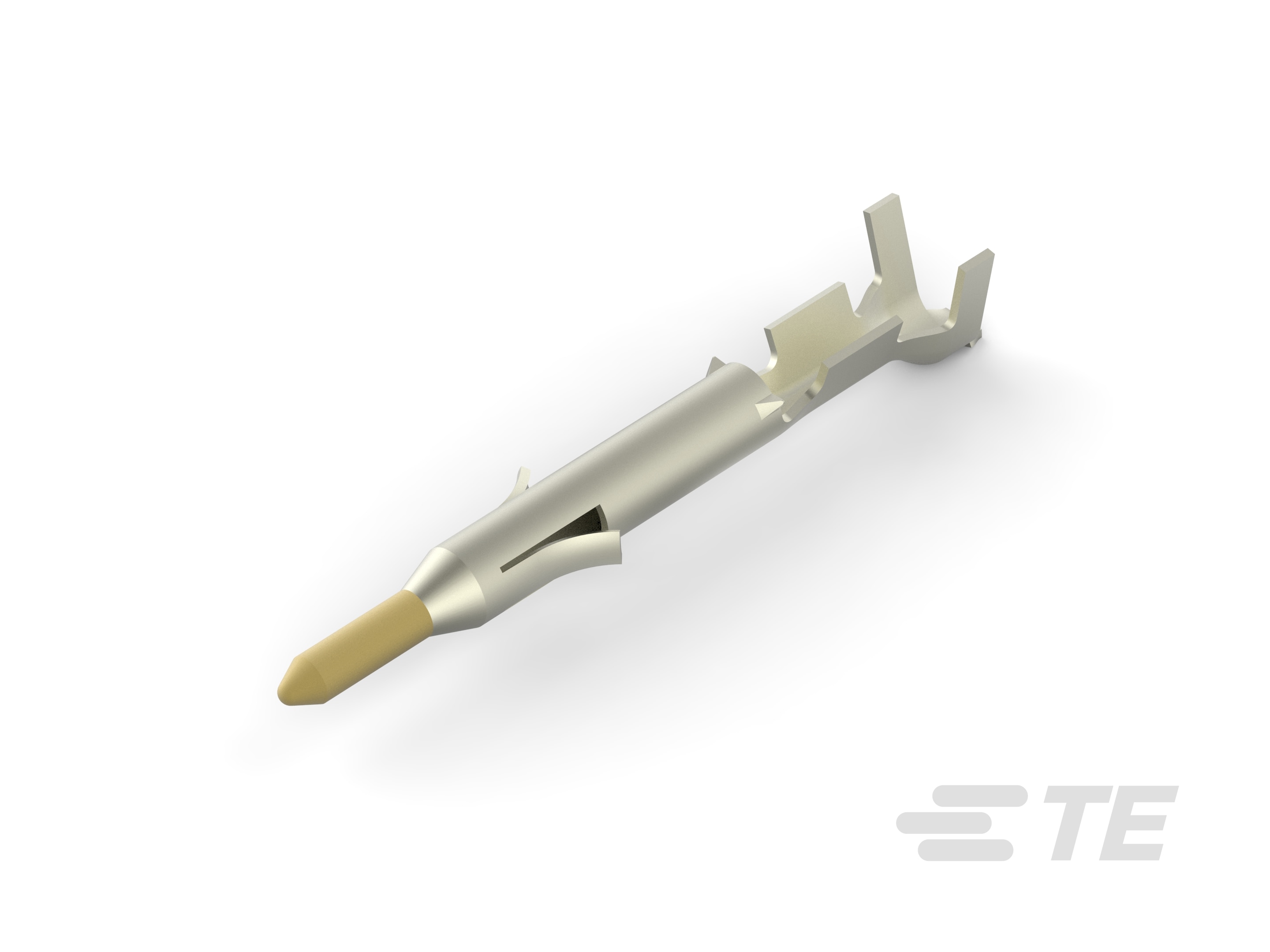

Specification	170363-3

Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Brass
Contact Termination	Crimp
Pin or Socket	Pin
Type	Stamped
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	22 AWG

Mini-Universal MATE-N-LOK Series

...

Part	Insulation Color	Termination	Contact Finish - Post	Fastening Type	Features	Number of Positions	Contact Finish Thickness - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Current Rating	Mounting Type	Shrouding	Contact Length - Post	Pitch - Mating	Insulation Height	Row Spacing - Mating	Insulation Material	Number of Rows	Contact Finish - Mating	Style	Number of Positions Loaded	Contact Type	Material Flammability Rating	Contact Material	Voltage Rating	Connector Type	Contact Shape	Type	Contact Termination	Pin or Socket	Contact Finish	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Row Spacing	Color	Pitch	Note	Contact Finish Thickness - Post	Applications	For Use With/Related Products	Accessory Type	Contact Finish Thickness
TE Connectivity AMP Connectors 1-794071-0	White	Solder	Tin	Locking Ramp	Board Lock	22	150 µin	85 °C	-20 °C	0 A	Varies by Wire Gauge	Through Hole	Shrouded - 4 Wall	0.175 in	0.163 in	0.531 in	0.163 in	Nylon Polyamide (PA)	2	Tin	Board Cable/Wire	All	Male Pin	UL94 V-0	Brass	600 V	Header	Circular
TE Connectivity AMP Connectors 770901-1																									Brass				Stamped	Crimp	Pin	Tin	26 AWG	22 AWG
TE Connectivity AMP Connectors 770586-1				Latch Lock		22		105 °C	-55 °C			Free Hanging (In-Line)						Nylon Polyamide (PA)	2				Female Male Male or Female				Plug			Crimp					0.163 in	White	0.163 in
TE Connectivity AMP Connectors 172333-1				Locking Ramp		12						Panel Mount Snap-In						Nylon 6/6 Polyamide (PA66)	3				Female Male Male or Female				Receptacle			Crimp					0.165 in	Natural	0.165 in	Contacts Not Included
TE Connectivity AMP Connectors 1-770621-0	White	Solder	Tin	Locking Ramp	Board Lock	12	150 µin	85 °C	-20 °C	0 A	Varies by Wire Gauge	Through Hole	Shrouded - 4 Wall	0.175 in	0.163 in	0.531 in	0.163 in	Nylon Polyamide (PA)	2	Tin	Board Cable/Wire	All	Male Pin	UL94 V-0	Brass	600 V	Header	Circular											150 µin	General Purpose
TE Connectivity AMP Connectors 2005877-1																																									Mini-Universal MATE-N-LOK Series	Plug Sealing
TE Connectivity AMP Connectors 1-770968-0	White	Solder	Tin	Locking Ramp	Board Lock	4	150 µin	85 °C	-20 °C	0 A	Varies by Wire Gauge	Right Angle Through Hole	Shrouded - 4 Wall	0.145 in	0.163 in	0.386 in	0.163 in	Nylon Polyamide (PA)	2	Tin	Board Cable/Wire	All	Male Pin	UL94 V-0	Brass	600 V	Header	Circular											150 µin	General Purpose
TE Connectivity AMP Connectors 1-794407-1																													Stamped	Crimp	Socket	Gold	20.5 AWG	16 AWG									30 µin
TE Connectivity AMP Connectors 1-794075-0	White	Solder	Tin	Locking Ramp	Board Lock	16	150 µin	85 °C	-20 °C	0 A	Varies by Wire Gauge	Through Hole	Shrouded - 4 Wall	0.175 in	0.163 in	0.531 in	0.163 in	Nylon Polyamide (PA)	2	Tin	Board Cable/Wire	All	Male Pin	UL94 V-0	Brass	600 V	Header	Circular											150 µin	General Purpose
TE Connectivity AMP Connectors 1-770876-0	White	Solder	Tin	Locking Ramp	Board Lock	9	150 µin	85 °C	-20 °C	0 A	Varies by Wire Gauge	Through Hole	Shrouded - 4 Wall	0.175 in	0.163 in	0.531 in	0.163 in	Nylon Polyamide (PA)	3	Tin	Board Cable/Wire	All	Male Pin	UL94 V-0	Brass	600 V	Header	Circular
