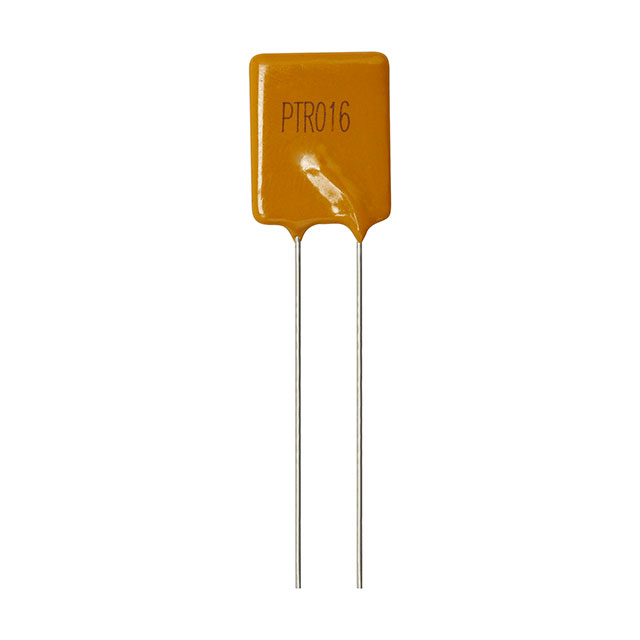

PTR016V0700-BK
ActiveEaton - Electronics Division
PTC RESET FUSE 16V 7A RADIAL
PTR016V0700-BK
ActiveEaton - Electronics Division
PTC RESET FUSE 16V 7A RADIAL
Description
General part information
PTR016V0700-BK
Polymeric PTC Resettable Fuse 16V 7 A Ih Through Hole Radial, Disc
Technical Specifications
Parameters and characteristics for this part
| Specification | PTR016V0700-BK |
|---|---|
| Approval Agency | cURus, TUV |
| Current - Hold (Ih) (Max) | 7 A |
| Current - Max | 100 A |
| Current - Trip (It) | 11.9 A |
| Height - Seated (Max) | 0.776 in |
| Lead Spacing | 0.197 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Disc, Radial |
| Resistance - Initial (Ri) (Min) | 6 mOhms |
| Resistance - Post Trip (R1) (Max) | 20 mOhms |
| Size / Dimension Length | 0.441 in |
| Size / Dimension Width | 0.122 in |
| Time to Trip | 3.5 s |
| Type | Polymeric |
| Voltage - Max | 16 V |
