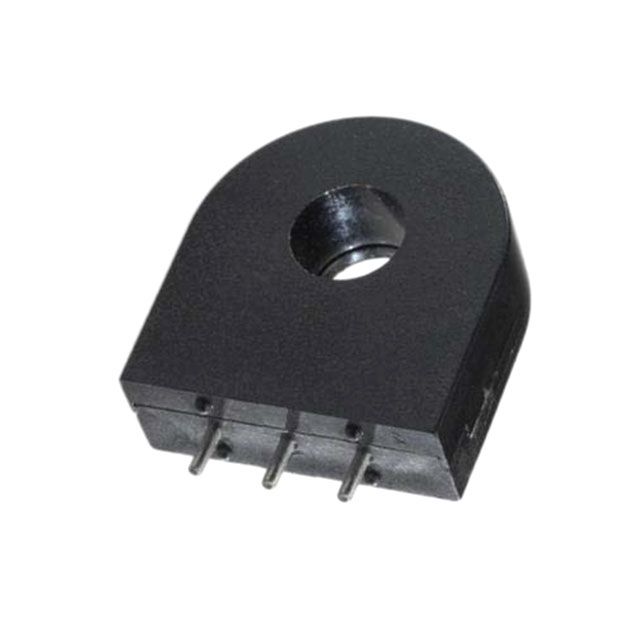

CST306-1T-B
35 A Current Sense Transformer 20kHz ~ 200kHz 340mOhm Max 3.5 mH Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | CST306-1T-B |
|---|---|
| Current Rating | 35 A |
| Current Ratio | 50 ratio |
| DC Resistance (DCR) (Max) | 340 mOhm |
| ET (Volt-Time) | 500 VµS |
| Frequency Range (Max) | 200 kHz |
| Frequency Range (Min) | 20 kHz |
| Height - Seated (Max) | 0.915 in |
| Inductance | 3.5 mH |
| Mounting Type | Through Hole |
| Size / Dimension Length | 0.69 in |
| Size / Dimension Width | 0.385 in |
| Termination Style | PC Pin |
| Type | Non-Invasive (Solid Core) |
