2495754-6
ActiveTE Connectivity AMP Connectors

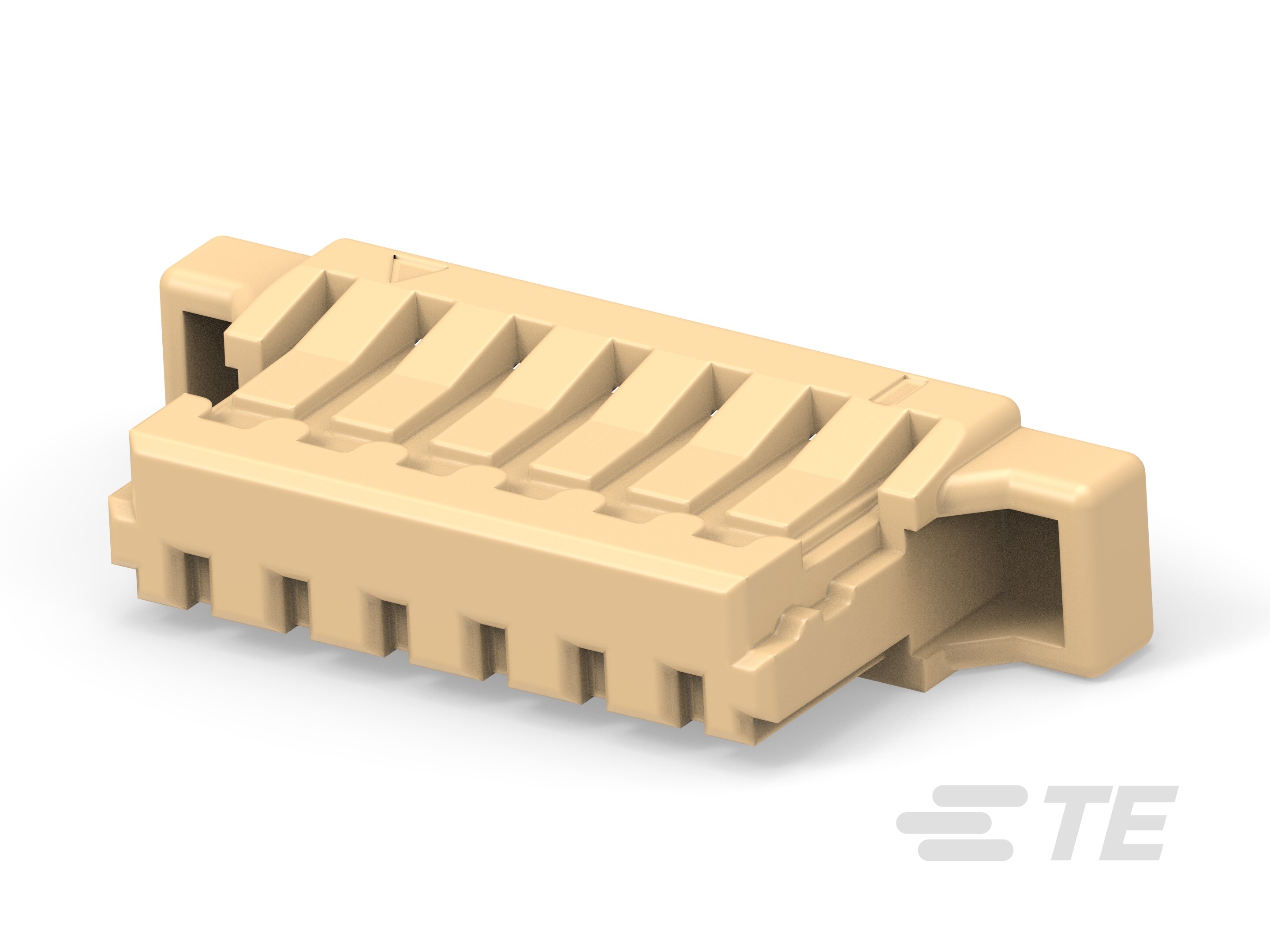

0.8MM CRIMP RECEPTACLE WTB 6POS
2495754-6
ActiveTE Connectivity AMP Connectors
0.8MM CRIMP RECEPTACLE WTB 6POS
Description
General part information
2495754-6
6 Position, Receptacle, Housing, Crimp, Wire-to-Board, Normal, .8 mm [.031 in] Centerline, 1 Row, 30 VAC, Wire & Cable, Power & Signal
Technical Specifications
Parameters and characteristics for this part
| Specification | 2495754-6 |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Pitch | 0.031 in |
