NSYTRV162
ActiveSCHNEIDER ELECTRIC

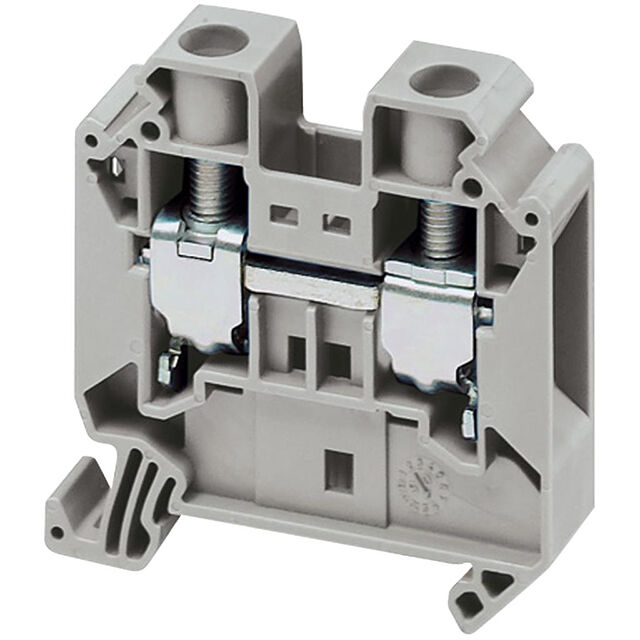

DIN RAIL MOUNT TERMINAL BLOCK, GRAY, 2 POSITIONS, 16 MM², SCREW, 76 A
NSYTRV162
ActiveSCHNEIDER ELECTRIC
DIN RAIL MOUNT TERMINAL BLOCK, GRAY, 2 POSITIONS, 16 MM², SCREW, 76 A
Description
General part information
NSYTRV162
Terminal Block Connector 2 Position Feed Through Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYTRV162 |
|---|---|
| Color | Gray |
| Current - IEC | 76 A |
| Current - UL | 85 A |
| Material - Insulation | Polyamide, PA66, Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length | 14 mm |
| Terminal Width | 12.2 mm |
| Termination Style | Screw |
| Type | Feed Through |
| Voltage - IEC | 1000 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - mm² (Maximum) | 25 mm² |
| Wire Gauge or Range - mm² (Minimum) | 1.5 mm² |
