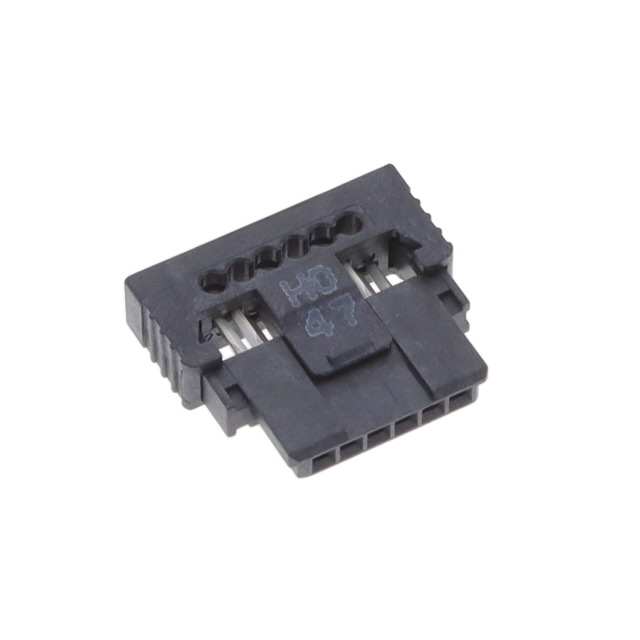

224395-E
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS 6-PIN,FEMALE,IDC2426FRIC.R/A
224395-E
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS 6-PIN,FEMALE,IDC2426FRIC.R/A
Description
General part information
- Series
Cable-to-Board, 6 Position, 1.27 mm [.05 in] Centerline, One Piece - IDC, Gold (Au), Power & Signal, Black, Tray, ERNI MiniBridge
Technical Specifications
Parameters and characteristics for this part
| Specification | 224395-E |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Pitch | 0.05 in |
| Wire Gauge (AWG) (Max) | 26 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
| Wire Type | Ribbon Cable, Discrete |
