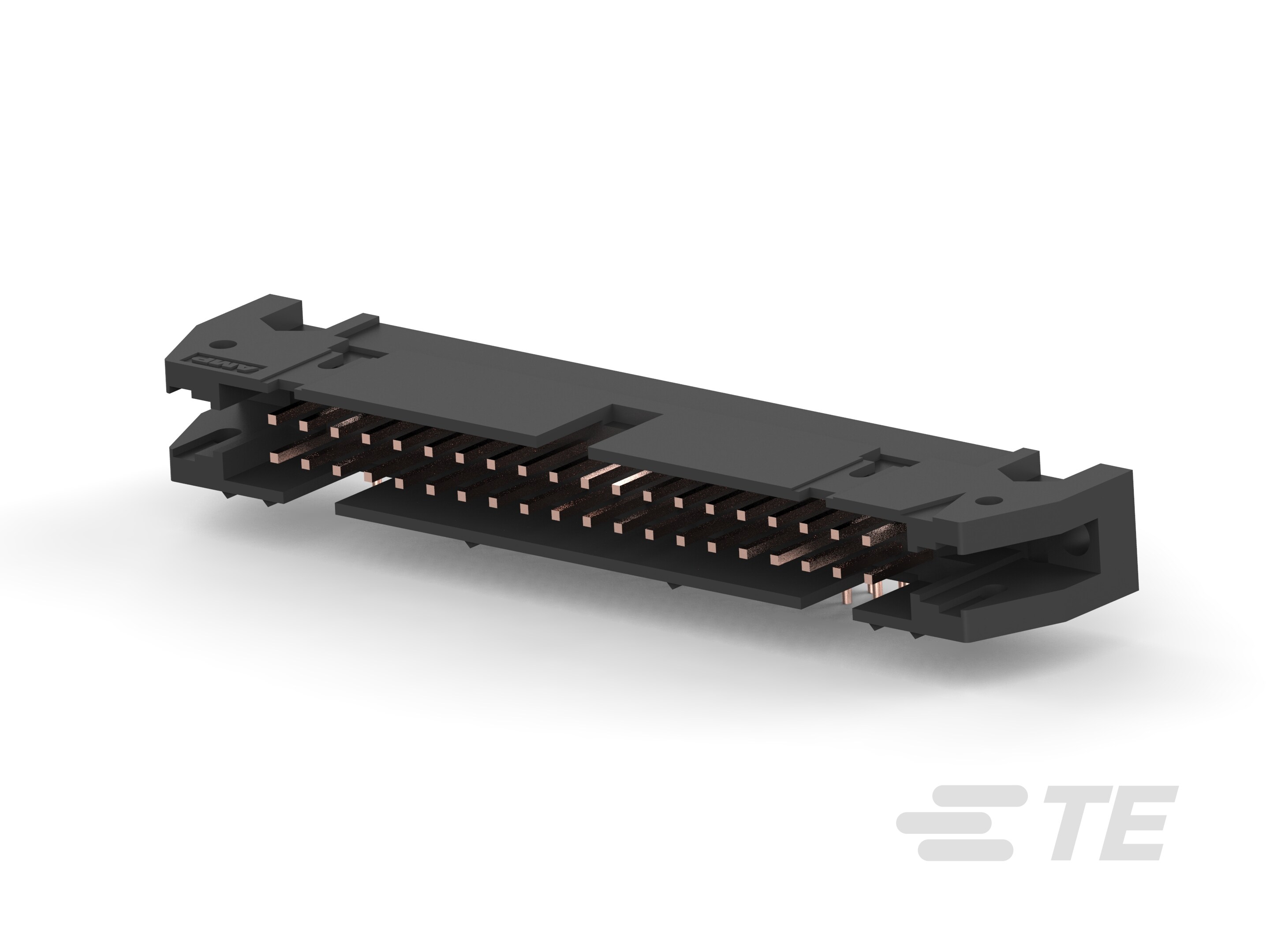

Specification	5102159-9

Connector Type	Header
Contact Finish - Mating	Gold-Palladium, Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Length - Mating	0.24 in
Contact Length - Post	0.11 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	1 A
Fastening Type	Push-Pull
Features	Keying Slot, Mounting Flange
Insulation Color	Black
Insulation Height	0.315 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V

AMP-LATCH Universal Headers Series

...

Part	Termination	Fastening Type	Number of Rows	Mounting Type	Shrouding	Overall Contact Length	Insulation Height	Contact Finish - Post	Contact Type	Style	Current Rating (Per Contact)	Number of Positions Loaded	Contact Finish - Mating	Insulation Color	Operating Temperature (Max)	Operating Temperature (Min)	Contact Length - Post	Contact Length - Mating	Connector Type	Material Flammability Rating	Contact Material	Contact Finish Thickness - Mating	Contact Shape	Row Spacing - Mating	Pitch - Mating	Number of Positions	Features	Contact Finish Thickness - Post	Voltage Rating	Current Rating
TE Connectivity AMP Connectors 5746443-8	Press-Fit Solder	Eject Hooks Latch Lock	2	Through Hole	Shrouded - 4 Wall	0.703 in	0.549 in	Tin	Male Pin	Board Cable/Wire	1 A	All	Gold Gold-Palladium	Black	105 °C	-65 °C	0.174 in	0.24 in	Header	UL94 V-0	Phosphor Bronze	30 µin	Square	0.1 in	0.1 in	34	Keying Slot Mounting Flange
TE Connectivity AMP Connectors 1658694-9	Press-Fit Solder	Push-Pull	2	Through Hole	Shrouded - 4 Wall	0.703 in	0.549 in	Tin	Male Pin	Board Cable/Wire	1 A	All	Gold Gold-Palladium	Black	105 °C	-65 °C	0.174 in	0.24 in	Header	UL94 V-0	Phosphor Bronze	30 µin	Square	0.1 in	0.1 in	24 pos	Keying Slot Mounting Flange	100 Ąin
TE Connectivity AMP Connectors 5499913-3	Solder	Latch Lock/Eject Hooks Short	2	Right Angle Through Hole	Shrouded - 4 Wall		0.315 in	Tin	Male Pin	Board Cable/Wire	1 A	All	Gold Gold-Palladium	Black	105 °C	-65 °C	0.11 in	0.24 in	Header	UL94 V-0	Brass	15 µin	Square	0.1 in	0.1 in	16	Keying Slot Mounting Flange		250 V
TE Connectivity AMP Connectors 499923-6	Solder	Latch Lock/Eject Hooks Long	2	Through Hole	Shrouded - 4 Wall	0.684 in	0.549 in	Tin-Lead	Male Pin	Board Cable/Wire	1 A	All	Gold Gold-Palladium	Black	105 °C	-65 °C	0.155 in	0.24 in	Header	UL94 V-0		15 µin	Square	0.1 in	0.1 in	26	Keying Slot Mounting Flange		250 V
TE Connectivity AMP Connectors 2-5102160-2	Solder	Push-Pull	2	Right Angle Through Hole	Shrouded - 4 Wall		0.315 in	Tin	Male Pin	Board Cable/Wire	1 A	All	Gold Gold-Palladium	Blue	105 °C	-65 °C	0.11 in	0.24 in	Header	UL94 V-0	Brass	30 µin	Square	0.1 in	0.1 in	14	Keying Slot Mounting Flange		250 V
TE Connectivity AMP Connectors 5499141-7	Solder	Latch Lock/Eject Hooks Long	2	Right Angle Through Hole	Shrouded - 4 Wall		0.315 in	Tin	Male Pin	Board Cable/Wire	1 A	All	Gold Gold-Palladium	Black	105 °C	-65 °C	0.11 in	0.24 in	Header	UL94 V-0	Brass	30 µin	Square	0.1 in	0.1 in	30	Keying Slot Mounting Flange		250 V
TE Connectivity AMP Connectors 1-5102321-0	Solder	Latch Lock/Eject Hooks Long	2	Through Hole	Shrouded - 4 Wall	0.684 in	0.549 in	Tin	Male Pin	Board Cable/Wire	1 A	All	Gold Gold-Palladium	Black	105 °C	-65 °C	0.155 in	0.24 in	Header	UL94 V-0		30 µin	Square	0.1 in	0.1 in	50	Keying Slot Mounting Flange	100 Ąin	250 V
TE Connectivity AMP Connectors 499913-3	Solder	Latch Lock/Eject Hooks Short	2	Right Angle Through Hole	Shrouded - 4 Wall		0.315 in	Tin-Lead	Male Pin	Board Cable/Wire	1 A	All	Gold Gold-Palladium	Black	105 °C	-65 °C	0.11 in	0.24 in	Header	UL94 V-0	Brass	15 µin	Square	0.1 in	0.1 in	16	Keying Slot Mounting Flange	100 Ąin	250 V
TE Connectivity AMP Connectors 499922-5	Solder	Latch Lock/Eject Hooks Long	2	Through Hole	Shrouded - 4 Wall	0.639 in	0.549 in	Tin-Lead	Male Pin	Board Cable/Wire		All	Gold Gold-Palladium	Black	105 °C	-65 °C	0.11 in	0.24 in	Header	UL94 V-0		15 µin	Square	0.1 in	0.1 in	24 pos	Keying Slot Mounting Flange		250 V	1 A
TE Connectivity AMP Connectors 102156-9	Solder	Push-Pull	2	Through Hole	Shrouded - 4 Wall	0.684 in	0.549 in	Tin-Lead	Male Pin	Board Cable/Wire	1 A	All	Gold Gold-Palladium	Black	105 °C	-65 °C	0.155 in	0.24 in	Header	UL94 V-0		30 µin	Square	0.1 in	0.1 in	40	Keying Slot Mounting Flange		250 V
