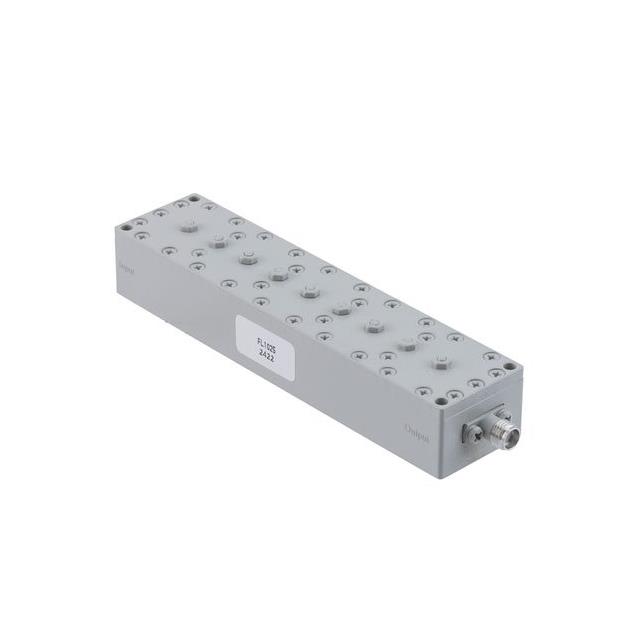

PE87FL1025
ActivePasternack
BANDPASS FILTER WITH SMA FEMALE
PE87FL1025
ActivePasternack
BANDPASS FILTER WITH SMA FEMALE
Description
General part information
PE87FL1025
BANDPASS FILTER WITH SMA FEMALE
Technical Specifications
Parameters and characteristics for this part
| Specification | PE87FL1025 |
|---|---|
| Bandwidth | 40 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 3 GHz |
| Height (Max) | 0.866 in |
| Insertion Loss | 2 dB |
| Mounting Type | Chassis Mount |
| Package / Case | SMA In line Module |
| Ripple (dB) | 0.8 dB |
| Size / Dimension Length | 4.331 in |
| Size / Dimension Width | 1.024 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
