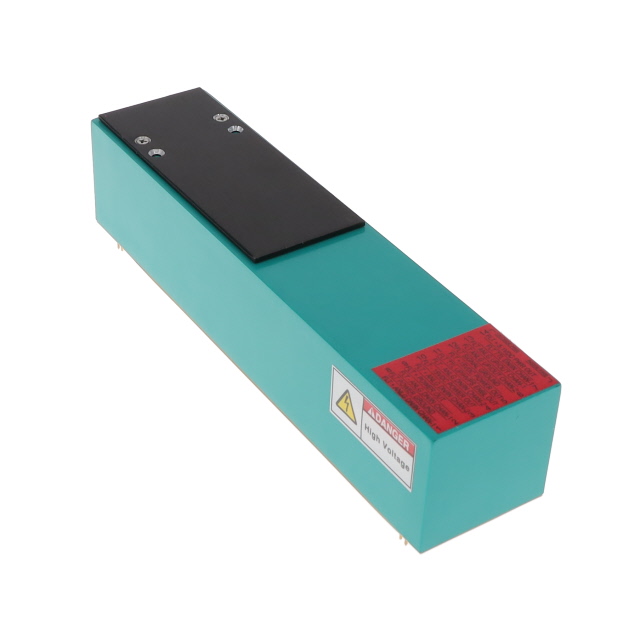

30EFL24 Series

Part	Voltage - Output 1	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Output 3	Operating Temperature (Min)	Operating Temperature (Max)	Type	Voltage - Output 2	Voltage - Isolation	Applications	Voltage - Input (Max)	Mounting Type	Current - Output (Max) Options	Voltage - Output 4	Power (Watts)	Approval Agency	Package / Case	Number of Outputs	Voltage - Input (Min)
ULTRAVOLT / Advanced Energy 30EFL24-24W-I/O-RB-M-H
ULTRAVOLT / Advanced Energy 15EFL12-12W-I/O-RB-M-E	12 V	5.7 in	1.5 in	1.3 in	5.1 V	-20 °C	55 °C	Isolated Module	15 V	15 kV	ITE (Commercial)	12.6 V	Through Hole	1A 500µA 50mA	-15 V	12 W	CE cURus	28-DIP Module	4	11.4 V
ULTRAVOLT / Advanced Energy 15EFL24-36W-I/O-RB-H
ULTRAVOLT / Advanced Energy 15EFL24-24W-I/O-RB-M
ULTRAVOLT / Advanced Energy 15EFL12-12W-I/O-RB-H
ULTRAVOLT / Advanced Energy 30EFL24-24W-I/O-RB-E	24 V	6.99 in	1.63 in	1.5 in	5.1 V	-20 °C	55 °C	Isolated Module	15 V	30 kV	ITE (Commercial)	26.4 V	Through Hole	1A 500µA 50mA	-15 V	24 W	CE cURus	28-DIP Module	4	21.6 V
ULTRAVOLT / Advanced Energy 30EFL12-12W-I/O-RB-H
ULTRAVOLT / Advanced Energy 15EFL24-36W-I/O-RB-M-H
ULTRAVOLT / Advanced Energy 15EFL24-36W-I/O-RB-M-E	24 V	5.7 in	1.5 in	1.3 in	5.1 V	-20 °C	55 °C	Isolated Module	15 V	15 kV	ITE (Commercial)	26.4 V	Through Hole	1A 500µA 50mA	-15 V	36 W	CE cURus	28-DIP Module	4	21.6 V
ULTRAVOLT / Advanced Energy 30EFL12-12W-I/O-RB-E	12 V	6.99 in	1.63 in	1.5 in	5.1 V	-20 °C	55 °C	Isolated Module	15 V	30 kV	ITE (Commercial)	12.6 V	Through Hole	1A 500µA 50mA	-15 V	12 W	CE cURus	28-DIP Module	4	11.4 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
