2822395-1
ActiveTE Connectivity AMP Connectors

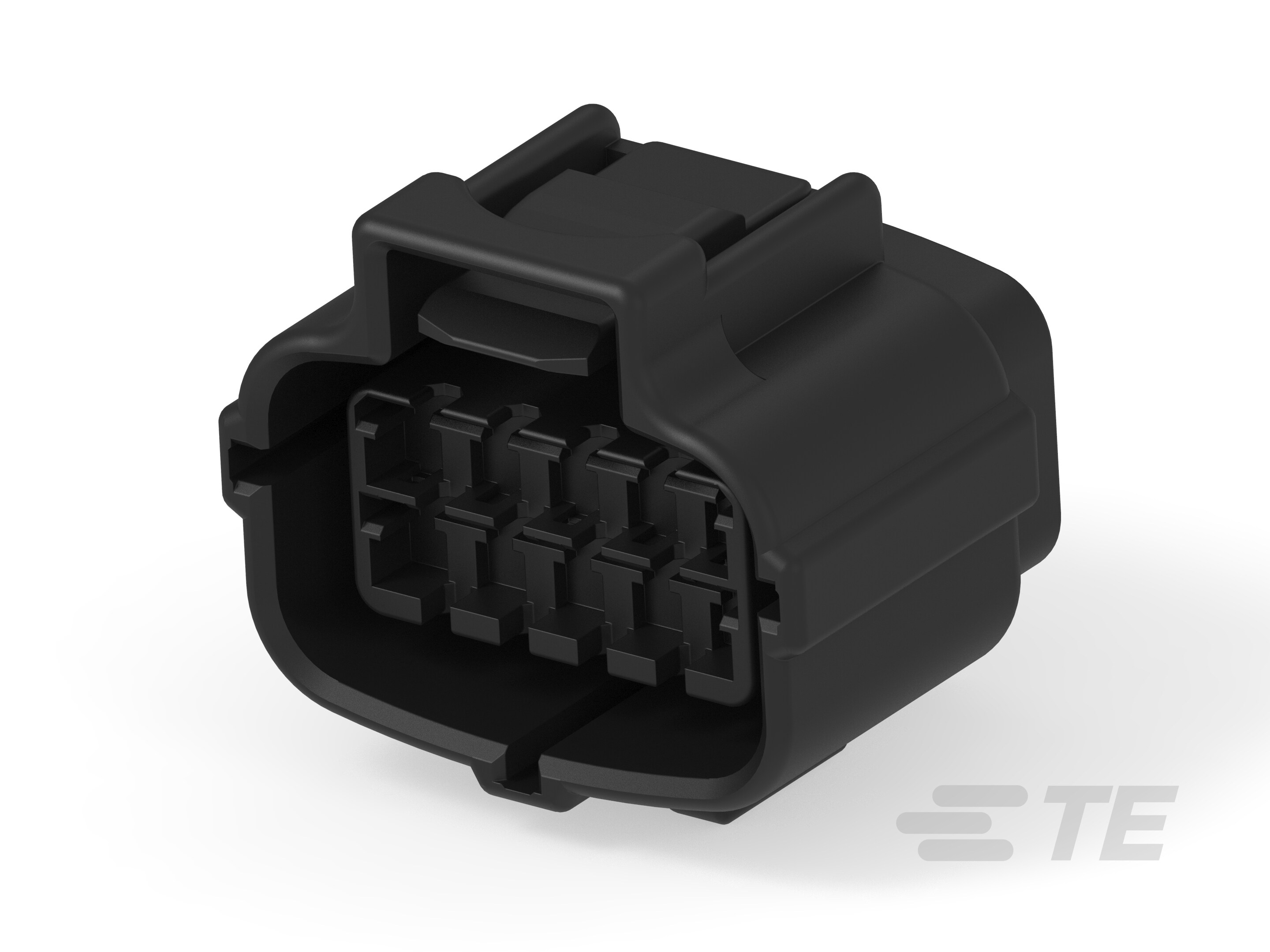

AUTOMOTIVE CONNECTOR HOUSING, ECONOSEAL J MARK II SERIES, PLUG, 10 POSITIONS
2822395-1
ActiveTE Connectivity AMP Connectors
AUTOMOTIVE CONNECTOR HOUSING, ECONOSEAL J MARK II SERIES, PLUG, 10 POSITIONS
Description
General part information
2822395-1
10 Position Housing, Housing for Female Terminals, Wire-to-Wire, 4.8 mm [.19 in] Centerline, Sealable, Black, Wire & Cable, Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 2822395-1 |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Holder |
| Features | Sealed |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.189 in |
| Row Spacing | 0.22 in |
