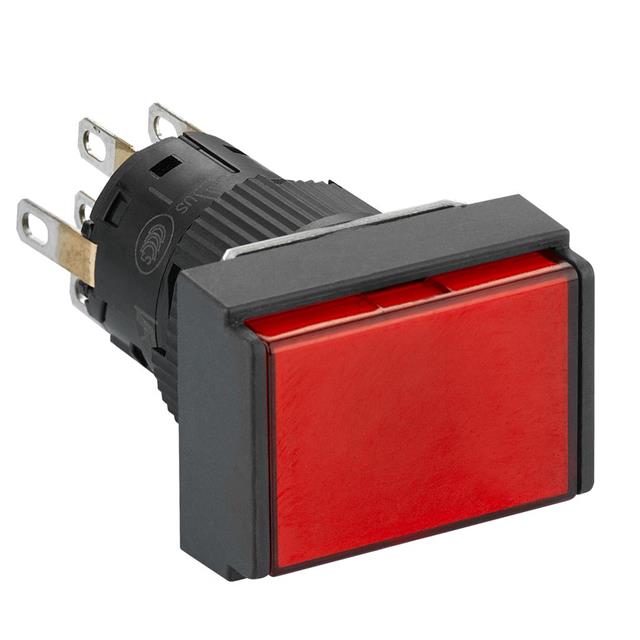

Specification	XB6EDW4B2P

Actuator Type	Button, Flush, Rectangular
Circuit	DPST-NC
Color	Red
Color - Actuator/Cap	Red
Current Rating	1.5 A, 1 A
Electrical Life (Cycles)	100000 Cycles
Illumination Type	LED
Illumination Voltage (Nominal)	24 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-10 °C
Panel Cutout Diameter	16 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	Off-On
Termination Style	Quick Connect
Type	Standard, Illuminated
Voltage Rating - AC	120 V
Voltage Rating - DC	24 V
