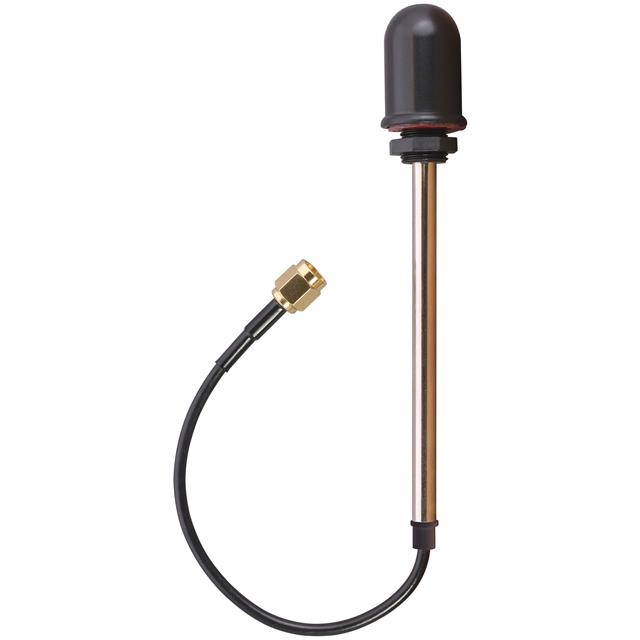

ANT-W63-WRT-SMA-250
ActiveTE Connectivity AMP Connectors
ANTENNA DOME WIFI6/6E RG174 250 RPS
ANT-W63-WRT-SMA-250
ActiveTE Connectivity AMP Connectors
ANTENNA DOME WIFI6/6E RG174 250 RPS
Description
General part information
ANT-W63-WRT-SMA-250
Dome/Puck Antenna, Triple Band, Wi-Fi, External Mount, Stud/Screw/Lug Mount, SMA, Omnidirectional, Single Port, > 6 dBi Peak Gain
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-W63-WRT-SMA-250 |
|---|---|
| Antenna Type | Dome |
| Applications | WLAN, Wi-Fi, Zigbee™, Bluetooth, ISM |
| Cable Length | 250 mm |
| Features | 250mm, Cable |
| Frequency (Center/Band) | 5.5GHz, 6.525GHz, 2.4425GHz |
| Frequency (Center/Band) - 1 | 2.4425 GHz |
| Frequency (Center/Band) - 2 | 5.5 GHz |
| Frequency (Center/Band) - 3 | 6.525 GHz |
| Frequency Group | SHF, UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (SHF) | 4 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Band 1) Maximum | 2.485 GHz |
| Frequency Range (Band 1) Minimum | 2.4 GHz |
| Frequency Range (Band 2) Maximum | 5.85 GHz |
| Frequency Range (Band 2) Minimum | 5.15 GHz |
| Frequency Range (Band 3) Maximum | 7.125 GHz |
| Frequency Range (Band 3) Minimum | 5.925 GHz |
| Gain | 4.5 dBi, 6.4 dBi |
| Height (Max) | 1.063 in |
| Mounting Type | Panel Mount |
| Number of Bands | 3 |
| Power - Max | 5 VA |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Termination Type | SMA Male |
| VSWR | 1.4, 1.5, 2.2 |
