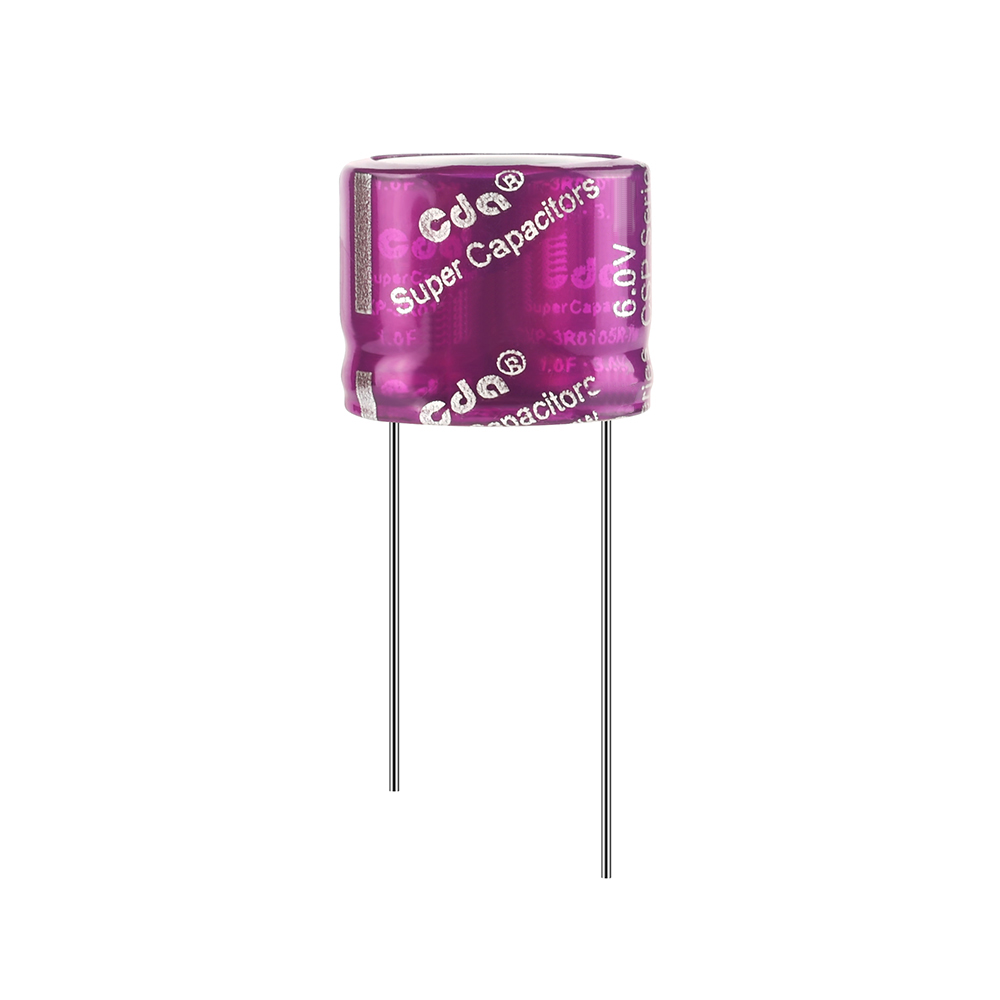

CSP-6R0L505R-TW
ActiveCDA (Zhifengwei Technology)
6.0V 5F 20*10*27 T/DA EDLC
CSP-6R0L505R-TW
ActiveCDA (Zhifengwei Technology)
6.0V 5F 20*10*27 T/DA EDLC
Description
General part information
CSP-6R0L505R-TW
5 F (EDLC) Supercapacitor 6 V Radial, Can 90mOhm @ 1kHz 1000 Hrs @ 65°C
Technical Specifications
Parameters and characteristics for this part
| Specification | CSP-6R0L505R-TW |
|---|---|
| Capacitance | 5 F |
| ESR (Equivalent Series Resistance) | 90 mOhm |
| Height - Seated (Max) | 1.122 in |
| Lead Spacing | 0.61 in |
| Lifetime | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Length | 0.787 in |
| Size / Dimension Width | 0.394 in |
| Termination | PC Pins |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 30 % |
| Voltage - Rated | 6 VDC |
