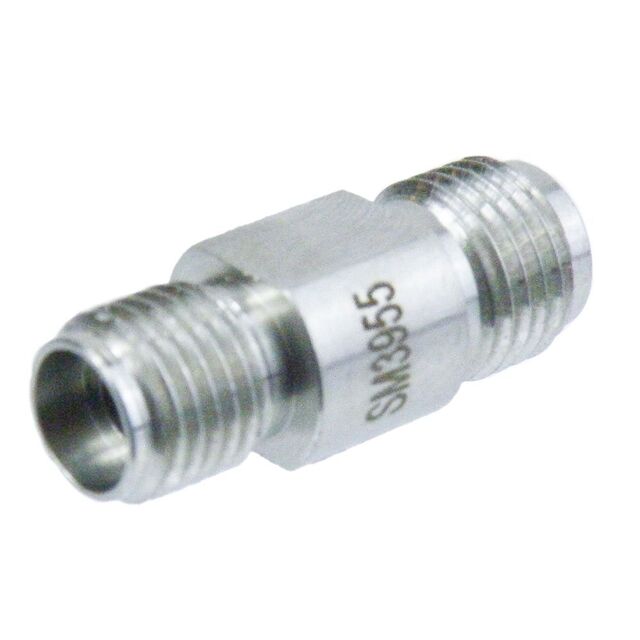

SM3955
ObsoleteFairview Microwave
ADAPT JACK-JACK 2.92MM 1.25 VSWR
SM3955
ObsoleteFairview Microwave
ADAPT JACK-JACK 2.92MM 1.25 VSWR
Description
General part information
SM3955
Adapter Coaxial Connector To
Technical Specifications
Parameters and characteristics for this part
| Specification | SM3955 |
|---|---|
| Adapter Series Size | 2.92 mm, 1.85 mm |
| Adapter Type | Jack to Jack |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Between Series |
| Convert From (Adapter End) Jack Size | 1.85 mm |
| Convert From (Adapter End) Type | Female Socket |
| Convert To (Adapter End) | Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Model | OS-2.9 |
| Convert To (Adapter End) Size | 2.92 mm |
| Convert To (Adapter End) Type | Jack |
| Fastening Type | Threaded |
| Frequency - Max | 40 Gbps |
| Impedance | 50 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
